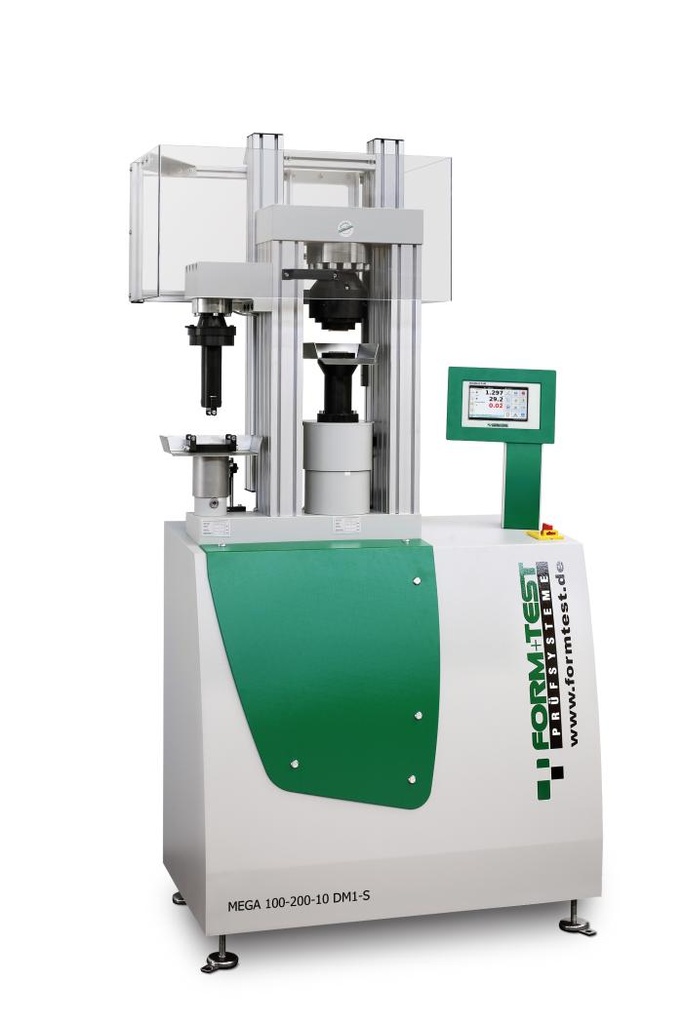

Compression and Bending Testing Machine, MEGA 100-300-10 DM1-S
● accuracy according to DIN EN ISO 7500-1, class 1
● for compression and flexure strength tests according to EN 196, EN 1015, EN 13892-2 with options also acc. EN 12504-1 and EN 993-5
● automatic load increase by digital controller DIGIMAXX® C40 with servo valve in closed loop system with nominal-actual value comparison
Technical Data – Compression Test
● test load max.: 300 kN
● working pressure max.: 192.55 bar
● piston stroke: 50 mm
● upper pressure plate: 40 mm
● lower pressure plate: 40 mm
● hardness of pressure plates:
58-62 HRC > 600 HV
● test area height: 50 mm
● inner width of test frame: 226 mm
● measuring range: 2.00 ... 300 kN
● display area: 0 ... 300 kN
Technical Data – Bending Test
● test load max.: 10 kN
● working pressure max.: 79,57 bar
● piston stroke: 50 mm
● test area height: 50 mm
● length of bending roller: 50 mm
● bending roller Ø: 10 mm
● bending roller distance: 100 mm
● measuring range: 0.2 ... 10 kN
● display area: 0 ... 10 kN
● force measurement via electronic load cell insensitive to shear forces
● voltage: 3x 400 Volt, 50 Hz, 3.0 kW
● weight: appr. 450 kg
Technical Data – Digital Controller
● capacitive and robust 7” touch display
● PID-controller with DSP processor
● modular system with expansion options up to 8 control and measuring channels 18 Bit
● measuring- and control cycle 2 kHz
● transmission of measured value up to1 kHz
● freely programmable test sequences
● real-time display of the measuring channels as well as of the specimen strengths and test speed
● authorization model with different role and access authorizations (tester, laboratory, manager, service technician, administrator)
● automatic and manually zero-adjustment
● adjustable break detection
● adjustable piston back-travel time
● specimen storage for test results
● 6 digital inputs galvanically isolated
● 9 potential-free relay outputs
● USB port for data export
● Ethernet connection for communication with PC software
Options:
● larger (higher) test area
● larger pressure plates
dimensions 110 x 110 x 30 mm dimensions Ø 210 x 40 mm
dimensions 210 x 210 x 40 mm
A set of pressure plates with floating axle for the bending test area
B bending table with adjustable bending rollers 30 ... 250 mm
C compression device DV 600 AZ
D E-modulus measuring equipment ● test software PROTEUSMT
Available with following test loads:
● for compression test:
100 kN, 200 kN, 300 kN
● for bending test:
10 kN, 20 kN, 30 kN
