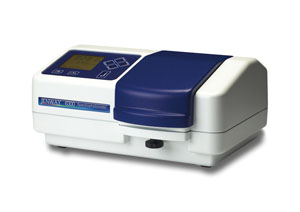

Jenway6300 Vis Spectrophotometers

• Wavelength range of 320 to 1000nm

• Absorbance, %T and concentration modes

• Multi-parameter display with wavelength and photometric readouts

• Wide range of sampling accessories

The 6300 VIS spectrophotometers are high quality, low cost units for spectrophotometric applications in schools and colleges, as well as in QC and testing procedures for a wide variety of services and industries.

Technical Specification

Parameter  6300
Wavelength range  320 to 1000nm

Wavelength resolution  1nm

Wavelength accuracy  ±2nm

Spectral bandwidth  8nm

Transmittance  0 to 199.9%T

Absorbance  –0.300 to 1.999A

Accuracy  ±1%T

Resolution  0.1%T, 0.001A

Stray light  <0.5%T

Noise  <1%  <0.001A at 0A at 400nm

Stability  1%/h after 15 minutes  <0.002A/h after 30 minutes

Concentration range  –300 to 1999

Concentration resolution  0.1 to 1

Units  ppm, mg/l, g/l, M, %, blank  ppm, mg/l, g/l, M, %, blank

Factor  0 to 199.9, 1000 to 9999

Light source  Tungsten halogen lamp

Outputs  Analogue and RS232  Analogue and RS232

Size (w x d x h)  365 x 272 x 160mm

Weight  6kg
