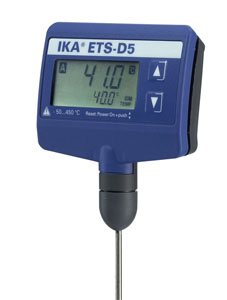

Electronic Contact thermometer ETS-D5

3 possible operation modes guarantee optimum adjustment to your application:
Operating mode A
Suitable for work with varying parameters (from -50°C to 450°C). Adjustable safety temperature
Operating mode B
Suitable for repeated operation under uniform conditions and parameters
Operating mode C
Suitable for unsupervised operation
- with optimised PID control
- reset function
- includes stainless steel sensor probe H 62.51
- for all magnetic stirrers with a DIN 12878 class 2 contact thermometer connection, e.g. IKA®, Heidolph and Corning with adapter AD-C1.
Specifications
Temperature
Measuring range: -50 to 450°C
Resolution: &plusminus;0.1K
Accuracy*: &plusminus;0.2K
Control accuracy: 0.1K
Control accuracy (with sensor) &plusminus;0.5K
Voltage: 8 to 16V d.c.
Current (at 9V)
Connection: 15 mA
DIN 12878 Class 2
Operating range:
Max. R.H.: 0 to 60°C
80%
Protection class:
Connector: IP54
6-pole, DIN 45322
Weight: 0.2kg
Tested to DIN EN IEC 61010-1.
Type ETS-D5
Dimensions (W x D x H) 82 x 22 x 83 mm
