Horizontal centrifugal pumps, magnetically coupled

These new magnetic drive pumps are designed for pumping acids, bases, mixtures of acids and bases, solvents, photochemicals into alkali stripping baths, galvanic baths, as well as radioactive, sterile, expensive or highly corrosive liquids. The pumps are sealless. The impeller is driven by the magnetic force of the outer magnets, therefore no mechanical seal is required. As the pump housing is hermetically sealed no leaks can occur. The use of high performance,
permanent magnets, ensures high transmission forces even at elevated temperatures.

- viscosity up to 20 mPas
- pump complete with flanged-to motor

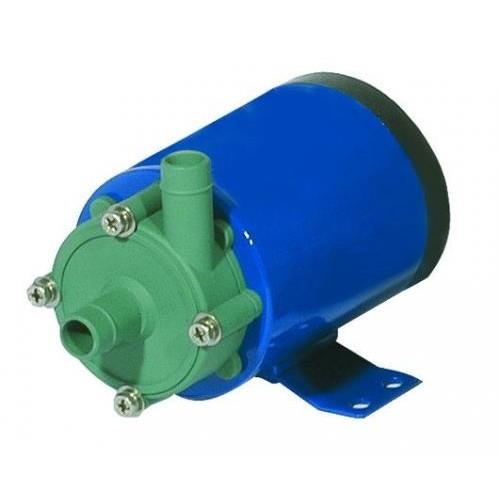

Magnetic drive pump 15 Watt:
Motor 230V, material PP (fibre-glass reinforced), stainless steel (shaft), Viton® (O-ring), tubing connection 14mm

Description 15 Watt, without thread
Flow rate 12 L / min.
Delivery head 2.0 mWS
