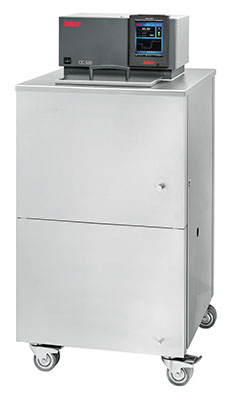

Refrigerated-heating circulating bath CC-520w

Refrigerated-heating circulating bath CC-520w

[9859248] Refrigerated-heating circulating bath CC-520w

Cooling circulator CC-515w

Combinations of immersion circulators and insulated refrigeration baths are low-cost solutions for direct thermoregulation within the temperature range -20/-30°C to 200°C. The refrigeration baths operate with natural refrigerants. A pump adapter (optional) can be fitted for thermoregulation of externally closed applications. Models with the Pilot ONE controller have a variable speed pressure/suction pump and are therefore suitable for external open thermoregulation applications. The temperature stability is 0.02K for the Compatible Control models and 0.05K for the MPC models.
Working Temp. range -55 ... +200 °C
Bath capacity 17/10 L


Log in to see price
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Specifications

Master Data
Group Bade og termostater
Item Type Apparatus
Manufacturer Brand Huber
Any questions, please contact Bo Deckers Skibild, bds@buch-holm.dk, 44 54 00 33
Sales Unit of Measure Units
Subgroup Refrigerated baths
Qty per Salesunit 1 Units
UNSPSC Category 41103701 Circulating baths
Specifications
Cooling capacity @20°C [Watt] 5000
Pump capacity [L/min.] 25
Pump capacity [bar] 0,7
Heating capacity [W] 3000
Max.Temperature Interval [°C] 3_151 op til 200°C
Max. Temperature 200.0
Min.Temperature Interval [°C] 4_-50 ned til -180°C
Min. Temperature -55.0
Model Huber CC
Resolution [°C] 0,01
Temp. stability [°C] ±0,02
Temperature [°C] -55 - 200
Bath volumen [L] 17.0
