Analytical Sieve Shakers
AS 200 basic / AS 200 digit / AS 200 control / AS 300 control / AS 450 control

Sieve shakers are used in research & development, quality control of raw materials, interim and finished products as well as in production monitoring.

Features:
- Sieving with 3D effect
- For wet and dry sieving
- Short sieving times
- Low-noise, maintenance-free

AS 200 basic: favourably priced basic model.

AS 200 digit: powerful comfort model with touch-sensitive keypad, digital display, interval sieving.

AS 200 control: like AS 200 digit, but microprocessor-controlled, with freely selectable intervals and digital vibration amplitude setting. It can be calibrated and, for the first time, allows 100% reproducible sieving results worldwide, even if different instruments are used. The AS 200 control has an integrated interface for the evaluation software EasySieve®. At the same time it also offers all the requirements for test materials monitoring according to ISO 9000 ff.

AS 300 control: like AS 200 control; also suitable for sieves up to 315mm diameter and for higher loads.

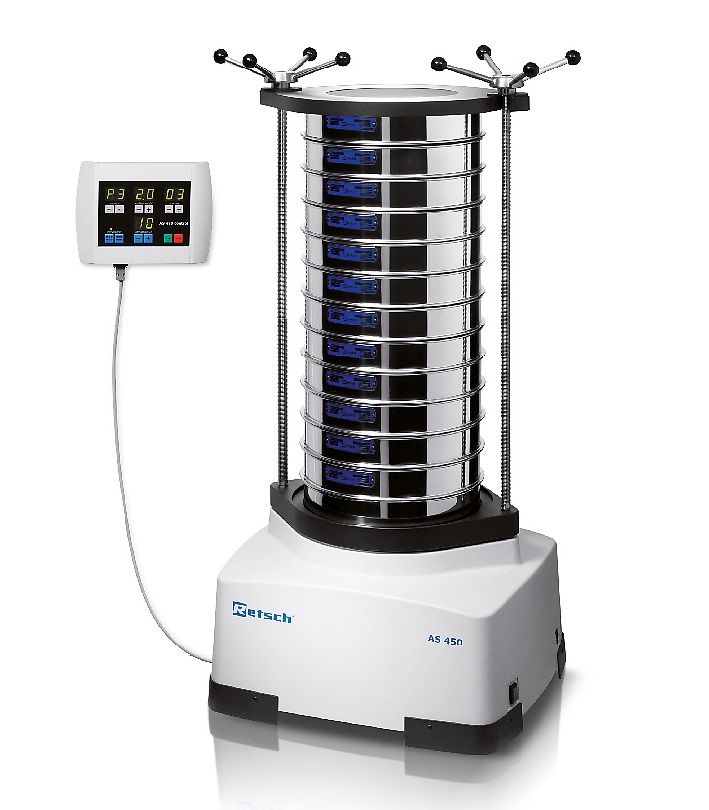

AS 450 control: like AS 200 control but only suitable for 400mm diam. and 450mm diam. sieves. The optimized electromagnetic drive with RETSCH's CET technology allows for an amplitude up to 2.2mm even with maximum loads up to 25kg. Manual re-sieving is no longer required.
Specifications
Max. number of fractions (depending on sieve size):
AS 200, AS 300:
AS 450: 9 / 17
14 / 11
Movement of sample: orbital with vibration
Height of sievetower
AS 200, AS 300:
AS 450: up to approx. 450mm
up to approx. 940mm
Max. charge/quantity of sample:
AS 200:
AS 300 control:
AS 450: 3kg
5kg
25kg
Timer:
AS 200 digit, control, AS 300: digital
AS 200 basic: analog
Type AS 450 control
Measuring range 20µm to 125mm
Dimensions (W x D x H) 715 x 435 x 630 mm
Weight 220 kg
For Sieve sizes (diam.) 400 / 450 mm
