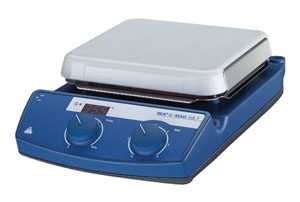

Magnetic stirrer C-MAG HS 7 Ikamag®

With heating. Ceramic hotplate which offers excellent chemical resistance.
- powerful motor for stirring quantities of up to 5L, 10L or 15L (H2O)
- fixed safety circuit of 550°C
- Hot Top indicator - hot surface warning to prevent burns
- exact temperature setting via digital display (LED)
- digital error code display
- elevated control panel for protection against spilled liquids
- connection acc. to DIN 12878 for attaching a contact thermometer, e.g. ETS-D5; enables precise temperature control

Specifications
Magnetic stirrer
Stirring quantity (H2O): 10L
Motor rating input / output: 15 / 1.5W
Speed range: 100 to 1500 rpm
Speed display: scale
Max. magnetic bar (L x dia.): 80 x 10mm
Heating function
Temperature display: digital
Heat output: 1000W
Heating rate (1 l H2O): 5K/min
Heating temperature range: 50 to 500°C
Heat control accuracy: ±10K
Fixed safety circuit: 550°C
Control accuracy with ETS-D5: ±0.5K
Top plate
Material: glass ceramic
Dimensions: 180 x 180 mm
Overall

Dimensions (W x D x H): 220 x 330 x 105 mm
Weight: 5 kg
