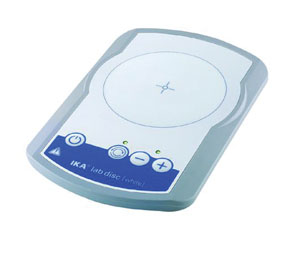

IKA lab disc, white, ultraflat

IKA lab disc, white, ultraflat

[9720480] IKA lab disc, white, ultraflat

Magnetic stirrer, lab disc

Without heating. Lab disc is an innovative, very flat, magnetic stirrer. Its modern, toroidal coil technology with no moving parts guarantees a maintenance-free drive. Lab disc can automatically change it's rotational direction every 30 secs. and therefore enhances mixing of the medium.
- Ex protected
- high IP protection rating (IP 65)


Specifications
Max. volume stirred (H2O): 800ml
Motor rating input / output, W: 5 / 3
Speed range: 15 to 1500rpm
Max. stirrer bar L x dia.: 30 x 8mm
Usable plate area dia.: 90mm
Top plate: Polyester
Dimensions (W x D x H): 114 x 161 x 12mm
Weight: 0.3kg
Housing IP rating to DIN EN 60529: IP65
Supply requirements: 100-240V 50/60Hz
Tested to DIN EN IEC 61010-1.
Description White
Dimensions (W x D x H) 117 x 180 x 12 mm
Pan dim. 100 dia. mm


Log in to see price
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Specifications

Master Data
Group Magnetomrørere
Item Type Apparatus
Manufacturer Brand IKA
Any questions, please contact Anne Sofie Larsen, asl@buch-holm.dk, 44 54 00 63
Sales Unit of Measure Units
Subgroup Magnetic stirrers without heating
Qty per Salesunit 1 Units
UNSPSC Category 41103806 Magnetic stirrers
Specifications
Dimension (bxdxh) [mm] 117x12x180
Max. speed interval - narrow range 3_1001 op til 2000o/min
Max. volumen (H2O) [L] 0,8
Model IKA Lab disc
Topplate [mm] Ø100
