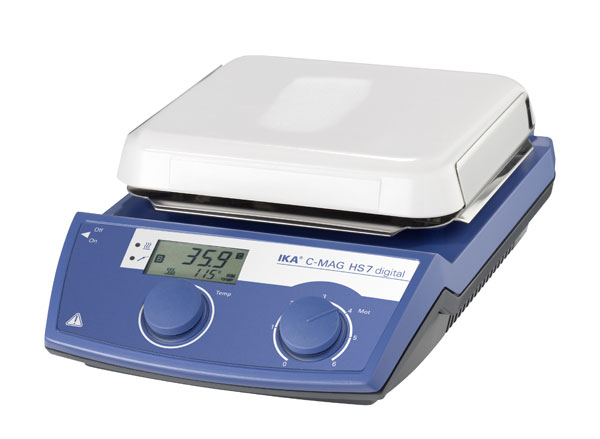

Magnetic stirrers C-MAG HS 7 digital

Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.

- Powerful motor for stirring quantities of up to 10l(H2O)
- Simultaneous digital display of target and actual temperatures via LCD display
- Directly connection for a PT 1000 temperature sensor enable a precise temperature control (included in delivery)
- Control accuracy in medium ±0.5K (in combination with PT 1000)
- Display of actual temperature value in medium with 0.1K resolution when using PT 1000 temperature sensor
- 3 operating modes to choose (standard, safe, adjustment protection)
- Fixed safety circuit of 550°C
- Hot Top indicator: hot surface warning to prevent burns!
- Digital error code display
- Elevated control panel for protection against leaking liquids

Specifications
Magnetic drive
Max. stirring quantity (H2O): 10l
Motor rating input / output: 15 / 1.5W
Speed range: 100 to 1500 rpm
Speed display: Scale
Max. stirring bar length: 80mm
Heating function
Heat output: 1000W
Heating rate (1l H2O): 5K/min
Temperature range min. / max.:  50 to 500°C
Setting accuracy: ±1K
Temperature display: LCD
Safety circuit fixed: 550°C
Connection for ext. temp. sensor: DIN 12878
Control accuracy with sensor: ±0.5K
Set-up plate
Material: ceramic
Dimensions: 260 x 260 mm
Protection class acc. to DIN EN 60529: IP 21
Power supply: 230 V, 50/60 Hz
Overall

Dimensions (W x D x H): 215 x 330 x 105 mm
Weight: 5 kg
