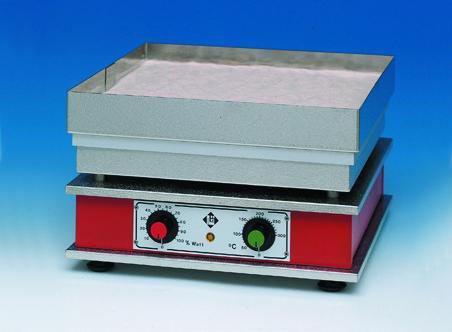

Sand baths

For continuous operation. Electrical sand baths with thermostatic temperature control and separate power controller for performance adjustment to the heating requirements. Anodised aluminium alloy hotplate. Excellent uniform temperature distribution over the entire heating surface. Asbestos free. The sand bath frame is tightly screwed onto the hotplate so that the sand is in direct contact with the hotplate. Useful depth 50mm. Stainless steel controller housing, with painted central section. Height-adjustable feet. Connection cable approximately 1.7m. With earthed plug for 230V supplies up to 3300W. A 400V 3-phase model is also available.
Type ST 82
Temp. range 50 to 300 °C
Weight 21.0 kg
Rating 2850 W
Dimensions (W x D x H) 514 x 364 x 220 mm
Supply requirements 230 V
