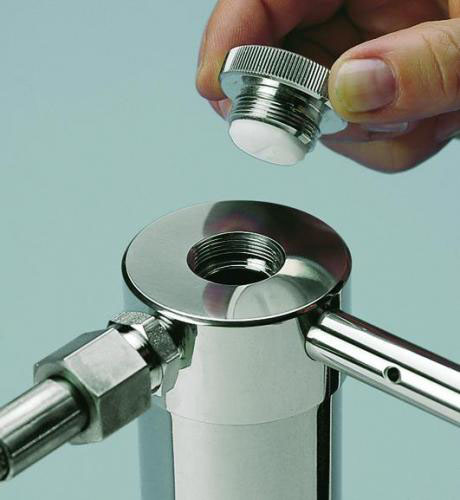

Filter holder from Sartorius, type 16249, in stainless steel. Barrel reservoir allowing up to 200 mL of liquid to be filtered by connection to a suitable direct pressure source. Can also be used for filtering larger volumes in conjunction with a 5 L pressurizing container. Complete with silicone O-rings and 10 mm diameter tubing ferrules on the inlet and outlets. For sterile filtration of tissue cultures, ultrafiltration of buffer solutions, cell count solutions, and for pressing soil samples.
Notes on usage:
- For membran filters D47 mm
- Possibility of prefiltering with D40-42 mm filters
- Possibility of connection of 5 L pressure tank for larger sample volumes
- Inlet/Outlet: hose nipple, DN10
- Possibility of mounting other in- and outlets with M12 thread
- Max. pressure under filtration: 10 bar (145 psi)
- Can be mounted on a tripod for increased stability
Sterilization possible by the following methods:
- Autoclave (max. 134 °C)
- Dry heat (max. 180 °C)
