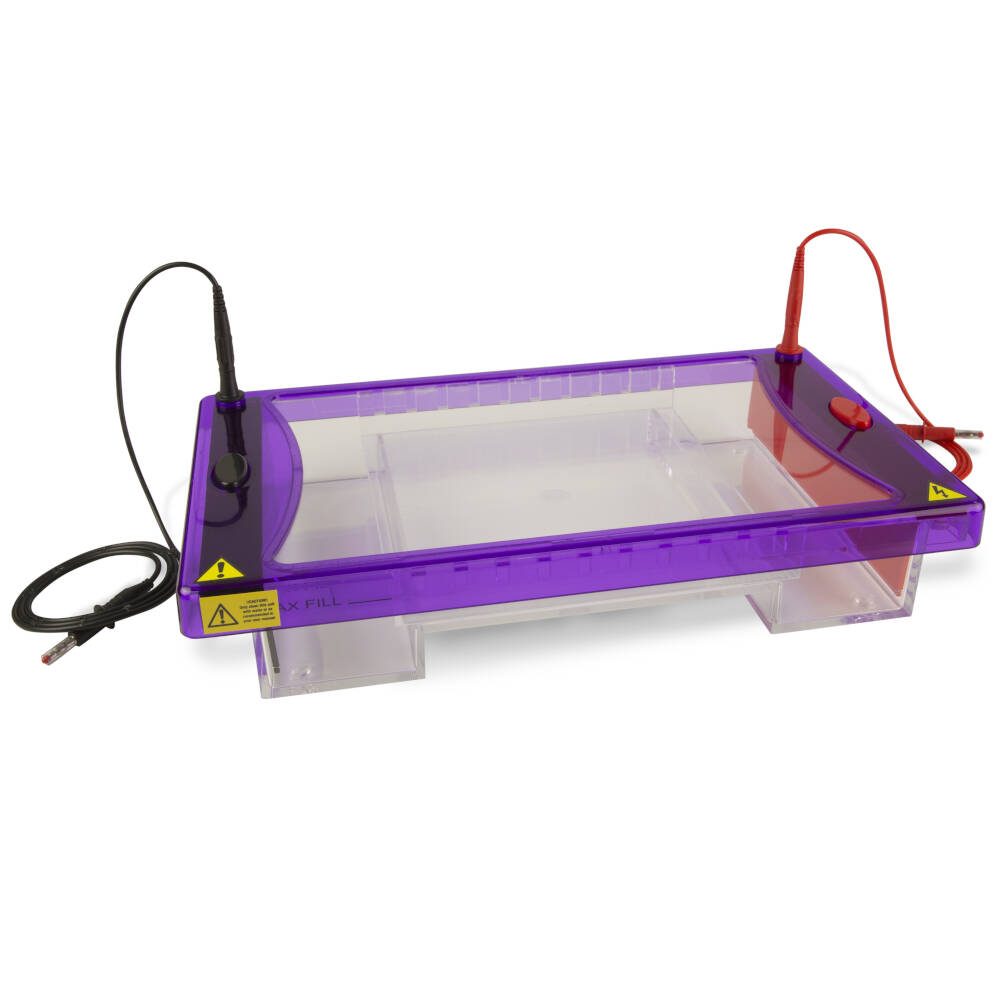

Gel electrophoresis tank MultiSUB maxi

The multiSUB Maxi is primarily designed for resolution of high numbers of samples such as from Cloning or PCR.

The multiSUB Maxi allows ultra high-resolution separations over extended runs. Tray sizes correspond to standard blotter sizes. It also allows easy sample transfer onto a membrane for further analysis.

Four gel tray sizes are available, 20 x 10cm, 20 x 15cm, 20 x 20cm and 20 x 25cm.

Multichannel pipette compatible combs up to 40 sample facilitate speed loading of up to 440 samples per gel. 50 sample combs allow maximum sample capacity of 550 samples per gel.

Supplied with: 20 x 25 cm gel tray, multiSUB maxi tank (with lid, cables and electrodes), 2 x 1mm thick combs for 20 samples each, gel tray dams for gel casting and loading guides.

Technical specifications
Gel dimensions: 200 x 250 mm

Maximum sample capacity: 550 samples

Buffer volume: 1200 mL

Typical running conditions: 100-150 V, 60-90 minutes

Bromphenol blue migrationrate: ~4-6.5cm/h at 100-150V

Unit dimensions: 230 x 295 x 90 mm
