Gel electrophoresis package omniPAGE mini

The preferred unit for routine mini protein electrophoresis, the omniPAGE mini is constructed using the latest injection moulding manufacturing techniques.

The unit incorporates a sealing system which is compatible with all major types of 8 x 10cm and 10 x 10cm precast gel.

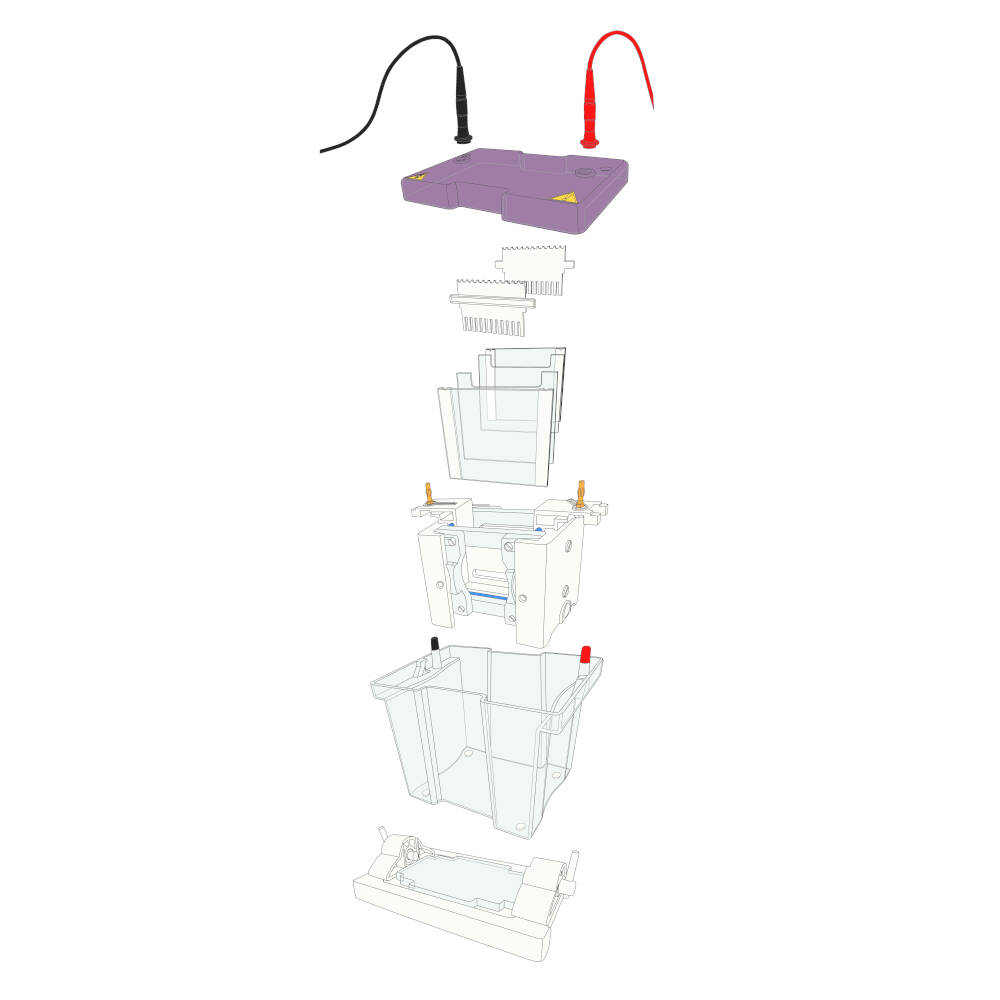

Gel casting and running utilise the same insert, no transfer of glass plates during gel casting is necessary.

The insert contains the option of sliding clamps or just one screw per clamping bar side allowing very rapid set up of both hand cast and precast gels.

Ultra soft silicone seals and pressure bars which surround the glass plates guarantee leak proof gel casting. 2mm thick glass plates prevent breakage and have bonded spacers for convenience.

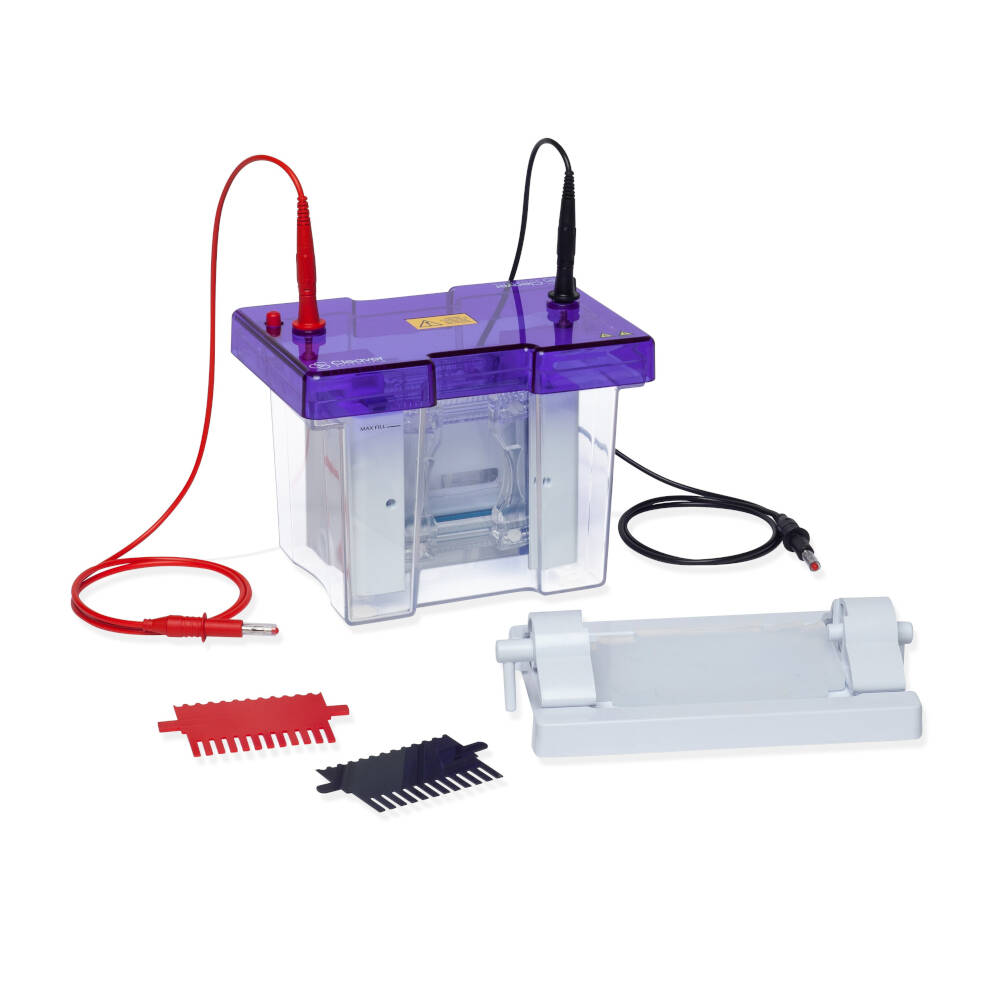

Supplied with: omniPAGE Mini tank (with lid and cables), Page insert, 2 sets of 10 x 10cm 1mm thick glass plates with bonded spacers (4 in total), 2 x 12 sample 1mm thick comb, casting base for gel casting and a cooling block for gels. Clamp version module.

Technical specifications:

Gel dimensions (W x L): 8 x 8.5cm

PAGE insert dimensions: 10 x 10 x 0.2 cm

Unit dimensions (W x D x H): 19 x 13 x 15cm

Max. sample capacity: 80 samples, 20 samples per gel

Buffer volume: min. 250ml; max 1200ml
