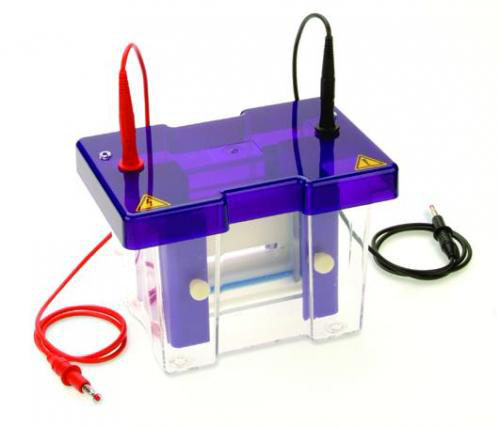

Gel electrophoresis tank omniPAGE Mini

The preferred unit for routine mini protein electrophoresis, the omniPAGE mini is constructed using the latest injection moulding manufacturing techniques. This gives a high quality, low cost product with unsurpassed finish, durability and strength. The unit incorporates a sealing system which is compatible with all major types of 8 x 10cm and 10 x 10cm precast gel.

Gel casting and running utilise the same insert, no transfer of glass plates during gel casting is necessary. The insert contains the option of sliding clamps or just one screw per clamping bar side allowing very rapid set up of both hand cast and precast gels. Ultra soft silicone seals and pressure bars which surround the glass plates guarantee leak proof gel casting. 2mm thick glass plates prevent breakage and have bonded spacers for convenience.

Supplied with: omniPAGE Mini tank (with lid and cables), 2 sets of 10 x 10cm 1mm thick glass plates with bonded spacers, 2 x 12 sample 1mm thick combs. Clamp version module.

Note that the casting base is not included with this product.

Technical specifications:
Gel dimensions (W x L): 7.5 x 8cm
Unit dimensions (W x D x H): 19 x 13 x 15cm
Max. sample capacity: 80 samples, 20 samples per gel
Buffer volume: min. 250ml; max 1200ml
