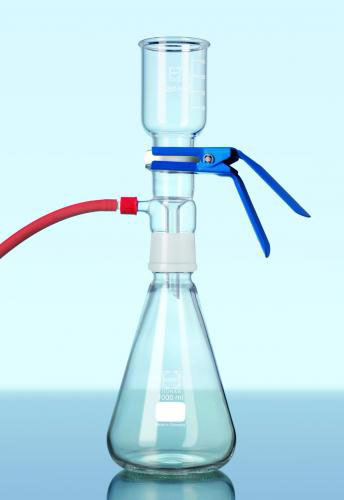

Complete filtering apparatus from DURAN®.
Made of high-quality 3.3 borosilicate glass. Aside from glass, the medium only comes into chemical contact with PTFE. This means that the filtering apparatus can be used to filter virtually any chemical. Thanks to the PTFE disc holder, fritted glass discs of different porosities can be used in addition to the slit-sieve disc. This creates a wide application scope for filtration using filter paper, membrane filters (D47 mm) or simply using glass filters D50 mm (9052941 - 9052954) with porosities between 10µm and 160µm, which makes it possible to perform coarse and fine filtration in addition to analytical filtration. Furthermore, the filtering apparatus is suitable for the filtration of HPLC media, testing for bacterial contamination, residue analysis and the filtration of other media.
Scope of delivery:
- 1000ml suction bottle with NS 45/40
- Top (head) NS 45/40 with hose connection GL 14
- PTFE adapter plate D48 mm
- Glass filter disc D50 mm (Porosity 2, 40-100 µm)
- Slit-sieve disc (perforated filter holder) D48 mm
- 250 mL filter funnel
- Clamp (anodised aluminium)
- Straight plastic hose connection (for inner diameter 8 mm tubing)
- Silicone seal (GL 14) for tightening of hose connection
Spare parts can be ordered separately. A PTFE adapter from N 45/40 to GL45 is available.
