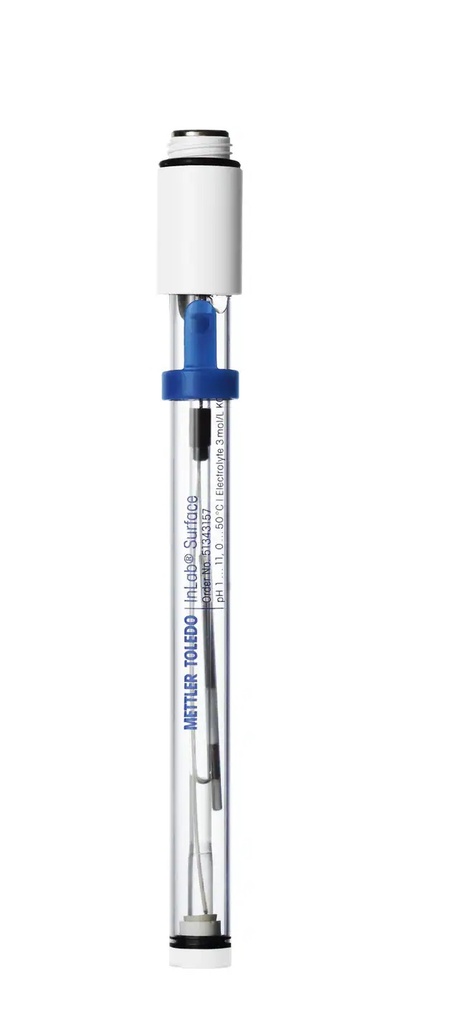

The pH electrode InLab® Surface from Mettler-Toledo has a flat tip and is designed for measurements on surfaces with minimal liquid, such as sinle drops. The electrode has a robus shaft in polysulfone for extra protection in harsh environments. Shipped without cable.

Measurements in solid or viscous samples is challenging and requires electrodes which are robust, ensure correct flow of electrolyte, and that are easy to clean. Sensors with these traits are often used for applications in the industries of food, beverage, and cosmetics.

Specifications

• pH range: 1 - 11
• Temperature range: 0 - 50 °C
• Reaction time (98 % between pH 4 - 7): <20 sec
• Shaft material: Polysulfone (PSU)
• Membrane glass type: LoT - Low temperature glass with low resistance. Suitable for samples with low temperatures and low ion concentrations.
• Membrane resistance (25 °C): <800 MΩ
• Reference system: ARGENTHAL™ with Ag⁺ trap
• Reference electrolyte: 3 mol/L KCl
• Shaft length: 120 mm
• Shaft diameter: 12 mm
• Cable connection: S7 plug head
