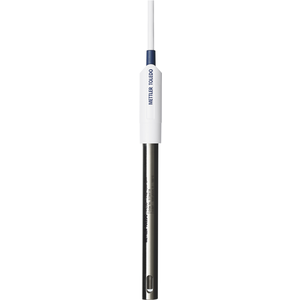

LE742 conductivity cell with temperature probe

Precise and robust cell for measuring conductivity of low values (0.001 μS/cm–500 μS/cm). Ideel for measuring in highly dilluted samples, pure and ultra-pure water. Dust- and waterfree after IP67.

2-pole cell for high accuracy measuring in the given conductivity interval. Features automatic temperature compensation with the integrated temperature probe.

Features Intelligent Sensor Management (ISM®) which saves measuring data and transfers this from the sensor to the meter along with sensor ID and calibration data.

Also available with a 5 m cable.

Specifications:

Measuring range: 0.001 to 500 μS/cm

Temperature range: 0 to 100°C

Cell type: 2-pole

Cell constant, K: 0.105 cm-1

Connection: LTW (IP67), 1.8 m cable

ISM-compatible: Yes

Shaft material: Stainless steel

Shaft length: 120 mm

Shaft diameter: 12 mm
