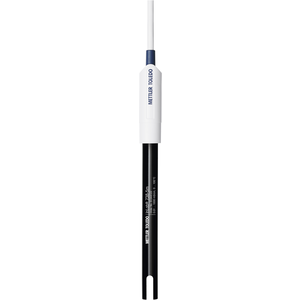

InLab®738 sensor for conductivity

A 4-pole carbon sensor for conductivity measurements with an integrated temperature sensor and a 5 m cable. Recommended for universal measurements in the field or in production.
The integrated temperature sensor removes the need for a separate sensor by compensating for the temperature differences between sample- and reference temperature.
The plastic element ensures full protection when used in more harsh environments. The open sensor is easy to rinse and minimizes sample transfer. The sensor is also protected against water and dust (IP67).

Specifications:

Measuring range: 0.01 - 1000 mS/cm

Temperature range: 0 - 100°C

Cell type: 4-pole

Cell constant, K: 0.57 cm-1

Connection: LTW (IP67), 5 meter cable

Shaft material: Epoxy

Shaft length: 120 mm

Shaft diameter: 12 mm
