High Precision PDF Data Logger EBI 310
PDF data logger with different temperature sensors. Compared to the EBI 300, the EBI 310 is characterized by shorter measuring intervals and higher storage capacity.
-Automatic pdf-report creation with temperature/time values
-Transport of drugs, inoculants, blood products and primary products
-Transport of all temperature sensitive products
-Storage of reference samples in refrigerators and deep-freezers
-''Traffic light principle'' by limit exceeded
-IQ/OQ procedures through standardized software and standard reporting process possible
-GMP, pharmaceutical law compliant; EN 12830, ATP, VO (EG) 37/205 compliant, 21 CFR Part 11 conform (Winlog.basic)
-Programmable via the free online configurator at www.ebi300.com

EBI 310 TX: Data logger with temperature dual adapter for two exchangeable temperature sensors (not included in the scope of supply), internal temperature sensor can be used additionally.

Specifications
Measuring range Internal/External: -30 °C … +75°C (- 22 °F ... +167 °F) /  -200°C … + 400°C (- 328 °F ... +752 °F), dependent on probe type
Accuracy Temperature Internal: ± 0.2 °C (- 30 °C … + 30 °C / - 22 °F ... +86 °F) ± 0.5 °C for the remaining measurement range
Resolution Temperature: 0.1 °C
Probe: Pt 1000
Memory Capacity: 120.000 measurements
Measuring period: 1 s to 24 h
Maximum Start Delay: 72 h
PDF creation: PDF/A 1b
Protection class (IP Rating): IP 65
Battery: Lithium button cell (CR 2450), 3V
Battery life time: Up to 2 years, depending on applications
Housing material: Polycarbonate
Display Value: MIN / MAX, until end of memory, alarm on / off
Measuring modes:  Start/Stop, endless loop, start with button
Alarms: 5 values
Dimensions: (L x W x H) 111 x 33 x 14mm
Weight: 35g
Certificate: Factory calibration certifi cate

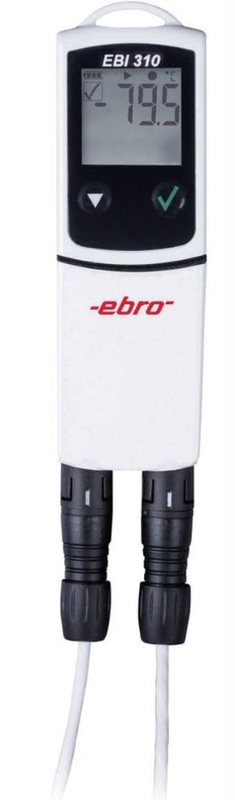

Type EBI 310 TX
Description Temperture data logger incl. external sensor and temp.- two-channel adapter
