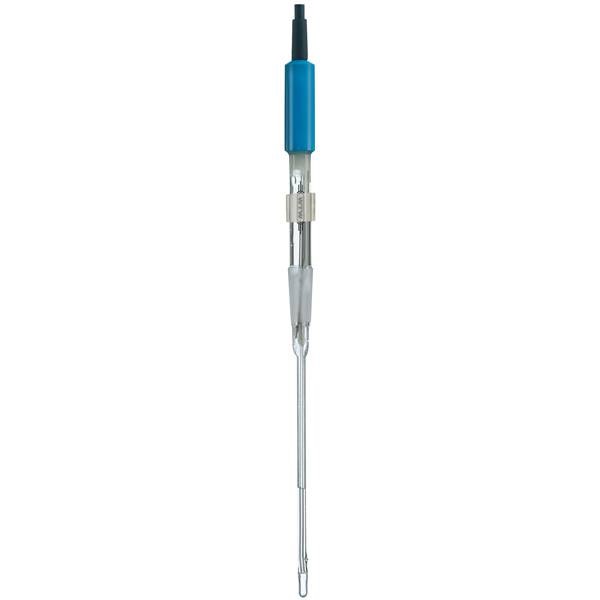

pH electrode, WTW SenTix® Mic-D: Micro electrode with thin glass shaft and DIN cable. For general and demanding measurements, especially where consistent flow of electrolyte is needed. Ideal for measurements in vials or test tubes, or for small volumes. With liquid electrolyte and a sliding cover for easy refilling. Shipped with fixed cable.
The electrodes in the SenTix® series from WTW are designed to cover the common measurements in pH and mV. The electrodes area available in glass or plastic, for general or specialised purposes, and with a range of junctions/diaphragms, which makes it possible to measure in aqueous solutions, protein-rich samples, solids and viscous samples, on surfaces, and much more. The series is available with and without various cables and temperature sensors, to make it easy to find the correct sensor for your pH meter. Collectively, they represent high quality, low pricing, robustness, and easy use.
Specifications
- pH range: 0 - 14
- Temperature range: -5 - 100 °C
- Shaft material: Glass
- Membrane resistance (25 °C): <1000 MΩ
- Reference electrolyte: 3 mol/L KCl, Ag+ free
- Junction/diaphragm: Platinum wire
- Shaft length: 96 mm
- Shaft diameter: 3 mm
- Connection: DIN
- Cable length: 1 m
