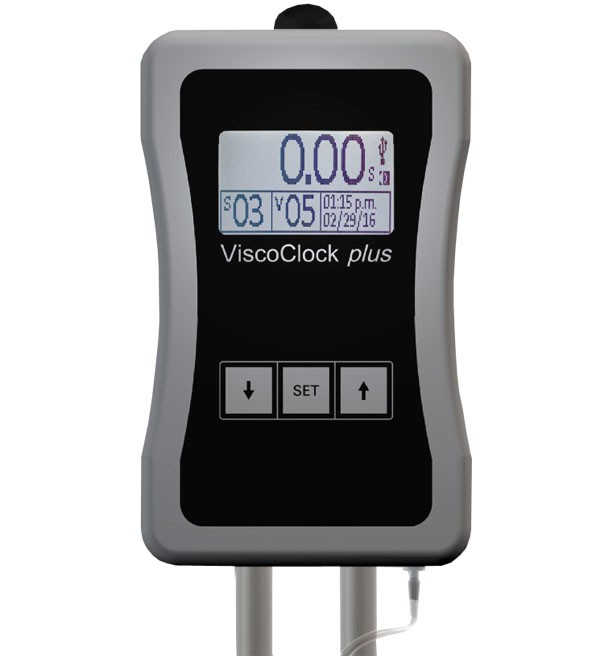

Measuring instrument for viscosity analysis ViscoClock plus
The ViscoCIock plus is an electronic timing unit for glass capillary viscometers used to determine kinematic and relative viscosity. Succeeding the well-proven ViscoCIock, the new instrument features data storage and simpler handling. The ViscoCIock plus is designed for SI Analytics Ubbelohde (DIN; ASTM; Micro) and Micro Ostwald viscometers. To determine absolute kinematic viscosities, viscometers have to be used which are calibrated for automatic measurements. The ViscoClock plus automatically measures the flow time of temperature-stabilized liquids in capillary viscometers by means of infrared light barriers. The viscometer including a sample is inserted into the ViscoClock plus and immersed into a thermostatic bath for temperature stabilization. After thermostating, the sample is pumped into the measuring bulb, and the flow time is detected automatically. The large display enables easy read-off of flow times and additional information: date, time, sample ID and viscometer ID.
The ViscoClock plus can be used in all SI Analytics bath types.

ViscoClock plus:Electronic timing unit for glass capillary viscometers, power supply 100-230 V and manual pump.

Specifications
Measuring range: Up to 999.99 secs. / resolution 0.01 sec.
Timing accuracy: ±0.01 sec. ±1 digit
Measuring range viscosity: 0.35 to 10000 mm2/sec. (cSt)
Operating temperature: Stand: -40 to +150 °C
Electronic measuring unit: +10 to +40 °C
Universal power supply TZ 1858: 100 – 240 V, 50 – 60 Hz (9 V, 550 mA)
USB interface: For connecting an USB stick or a printer (TZ 3863), Type A USB connector, Type B mini USB connector
Dimensions (W x D x H): approx. 90 x 30 x 515 mm
Weight: approx. 450 g (without viscometer)
Power pack approx. 220 g

Type ViscoClock plus
