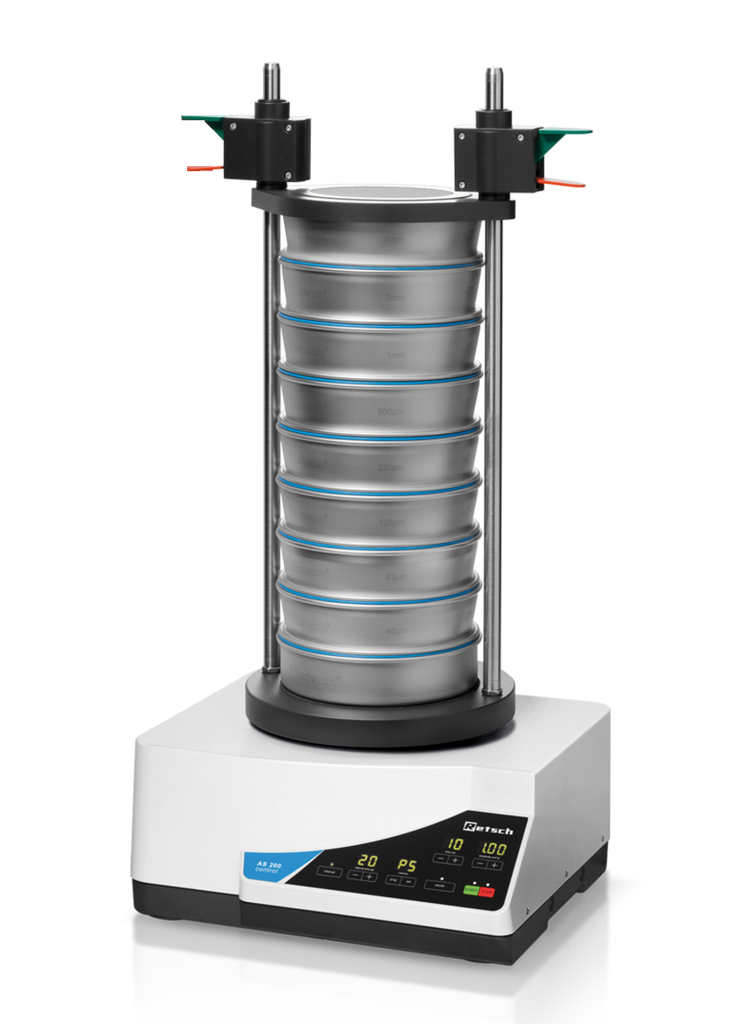

Analytical Sieve Shaker AS 200 control
Sieve shakers are used in research & development, quality control of raw materials, interim and finished products as well as in
production monitoring.
AS 200 control: like AS 200 digit, but microprocessor-controlled, with freely selectable intervals and digital vibration amplitude setting. It can be calibrated and, for the first time, allows 100% reproducible sieving results worldwide, even if different instruments are used. The AS 200 control has an integrated interface for the evaluation software EasySieve®. At the same time it also offers all the requirements for test materials monitoring according to ISO 9000.
Features:
-Sieving with 3D effect
-For wet and dry sieving
-Short sieving times
-Low-noise, maintenance-free

Please order clamping device, test sieves and collecting pan separately.

Specifications
Applications: separation, fractioning, particle size determination
Max. number of fractions (depending on sieve size): 11/23
Movement of sample: orbital with vibration
Height of sievetower: up to approx. 620 mm
Measuring range*: 20 µm - 25 mm
Max. charge/quantity of sample: 3 kg
Max. mass of sieve stack: 6 kg
Amplitude digital: 0.2 - 3 mm
Sieve acceleration: 1.0 - 15.1 g
Timer: digital
Time display: 1 - 99 min
Interval operation: 1 - 99 s
Measuring range: 20 µm - 25 mm
Protection code: IP 54 / IP 20
USB interface
Electrical supply: 100-240 V, 50/60 Hz
Power connection: 1-phase
Dimensions (W x D x H): 417 x 384 x 212 mm
Weight: 35 kg
Standards: CE

*depending on feed material and instrument configuration/settings

Type AS 200 control
For Sieve sizes (diam.) 100 / 150 / 200 / 203 mm (8")
