Gel electrophoresis tank omniPAGE Mini package for 2D electrophoresis Western blotting

The preferred unit for routine mini protein electrophoresis, the omniPAGE mini is constructed using the latest injection moulding manufacturing techniques. This gives a high quality, low cost product with unsurpassed finish, durability and strength. This package solution comes with an insert for capillary/tube gel electrophoresis and an insert for transfer of Western blots.

The unit incorporates a sealing system which is compatible with all major types of 8 x 10cm and 10 x 10cm precast gel.

Gel casting and running utilise the same insert, no transfer of glass plates during gel casting is necessary. The insert contains the option of sliding clamps or just one screw per clamping bar side allowing very rapid set up of both hand cast and precast gels. Ultra soft silicone seals and pressure bars which surround the glass plates guarantee leak proof gel casting. 2mm thick glass plates prevent breakage and have bonded spacers for convenience.

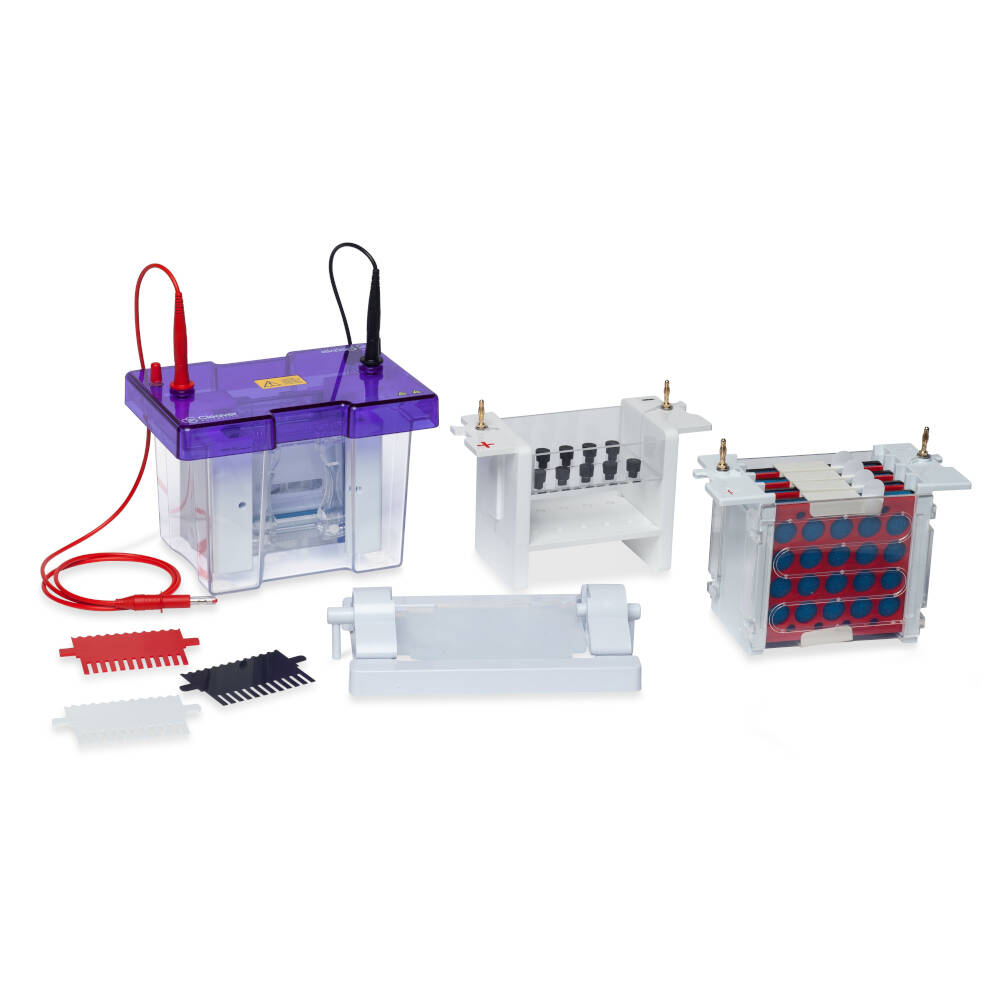

Supplied with: omniPAGE Mini tank (with lid and cables), omniPAGE mini tube/capillary insert, omniBLOT mini insert for Western blot transfer, 2 sets of 10 x 10cm 1mm thick glass plates with bonded spacers, 2 x 1.5mm thick combs and a casting base for gel casting. Clamp version module.

Technical specifications:

Gel dimensions (W x L): 7.5 x 8cm

Unit dimensions (W x D x H): 19 x 13 x 15cm

Max. sample capacity: 80 samples, 20 samples per gel

Buffer volume: min. 250ml; max 1200ml
