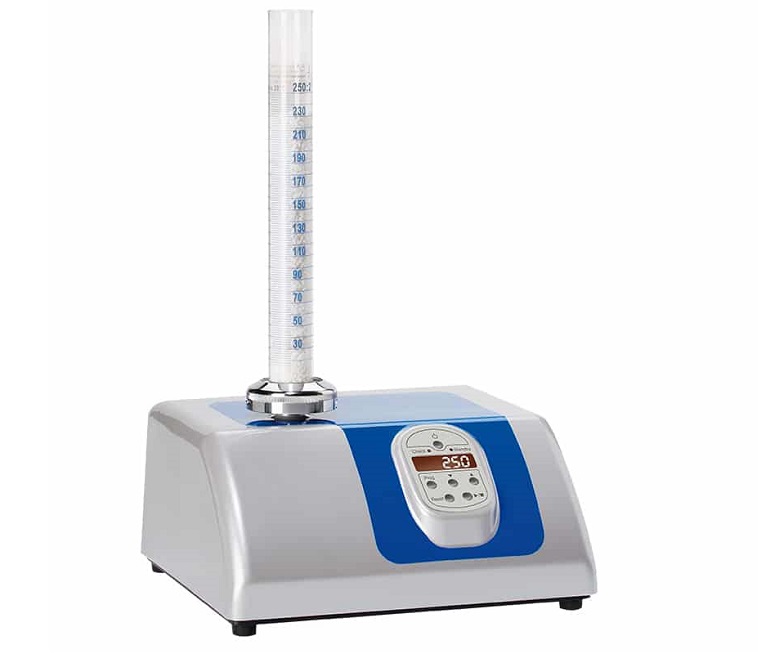

Jolting Volumeter STAV-II

Short Description

Speed of the camshaft: 250 rpm ± 15 rpmsingle-phase AC motor and condenser50 Wweight of the measuring cylinder with holder: 670 g ± 45 gdropping height of the guide punch: 3 mm ± 0.1 mmnoise level acc. to DIN 45635: approx. 80 dB(A)standard voltage: 230 V/ 50 Hz (special voltage is possible upon request)net weight: approx. 9 kgdimensions: approx. 290 x 330 x 180 mm (without measuring cylinder)dimensions: approx. 290 x 330 x 500 mm (with 250 ml measuring cylinder)

Range of Application

The apparatus is used for the determination of the apparent volumes before and after settling, the ability to settle as well as the tapped density acc. to the European Pharmacopoeia, DIN ISO 787 Part 11, ISO 3953 and ASTM B 527-93. The possibility of using measuring cylinders of 10, 25, 50, 100, 250, 500 und 1000 ml opens a wide range of industrial applications for this kind of equipment. Investigation of powdery, fibrous and granular products can be performed.
