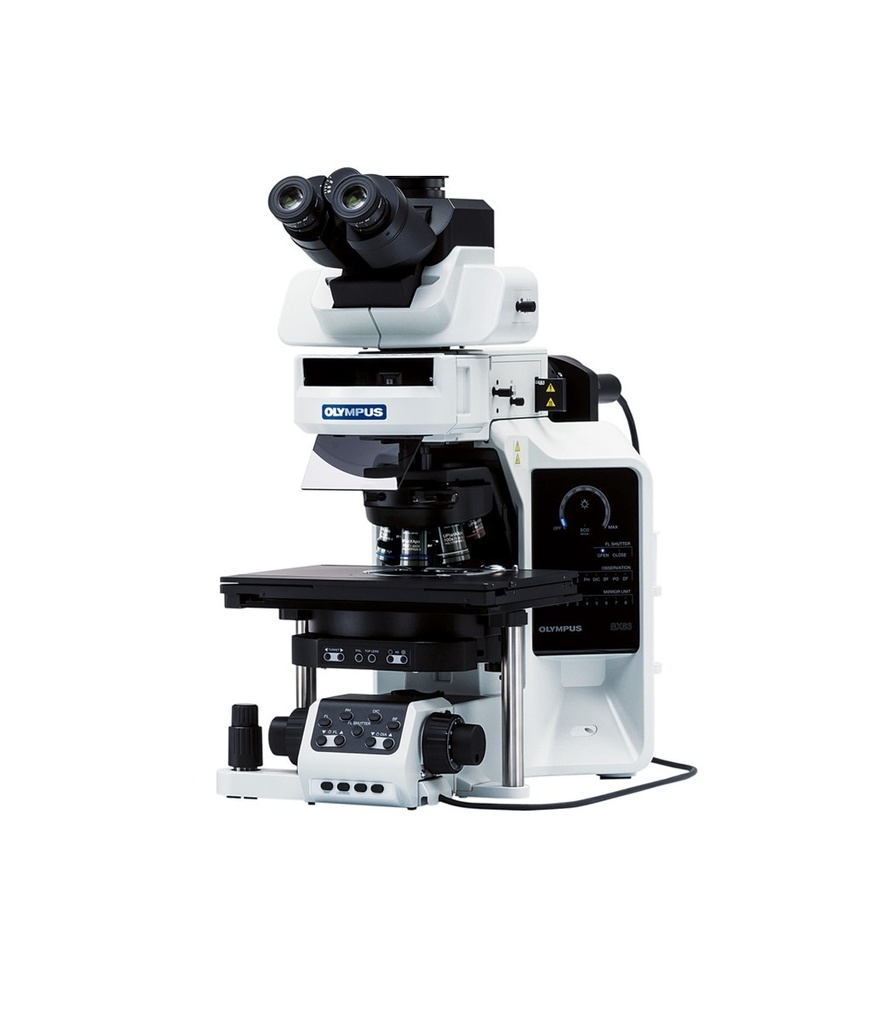

Model: Olympus BX63FL motorized
Contrast Method: Brightfield, Fluorescence
Observation Tube: Tilting trinocular observation tube with adjustable inclination (5°-35°)
Eyepieces: 10X/22 widefield, focusable
Nosepiece: Motorized 7-position rotating nosepiece
Objective Classification: Universal Plan Extended Apochromat
Objectives: 4x (NA=0.16), 10x (NA=0.4), 40x (NA=0.95)
Stage: Motorized X/Y stage, (dovetail fixing mechanism), 160x11mm kapacity of one slide
Condenser: Motorized, 8-position, flourescence condensor with reflected light
Light Source: LED light source with high color rendering
Filter cubes: Narrow UV (exciter filter 360-370nm, beam splitter 410nm, barrier filter 420-460nm), Narrow Blue (exiter filter 470-495nm, 505nm beam splitter, barrier filter 510-550nm), Narrowband Green (exciter filter 540-550nm, beam splitter 570nm, barrier filter 510-550nm)
Included Accessories: Fluorescence light module, motorized flourescens light illuminator (8-position turret), liquid light guide (1.5 m), control box
Upgrade Options: Software upgrade (CellSens Standard or Dimension), additional filter cubes and light modules, extra objectives, digital cameras
The three excitationsfilters has the following phlorophor-options
Narrow UV excitation-filter
1,8-ANS
(BAO) - Feulgen
Calcein Blue
DAPI
DPH
Filipin
Fast Blue
Granular Blue
Hoechst 33258, 33342
mBCI
OPT
Primuline
Stilbene Isothiosulphonic acid
True Blue
Narrow Blue excitation-filter
Acridine Orange
Acridine Yellow
Alexa Flour 488
Alexa Flour 488-Phalloidin
Azami-Green
BAPTA-1
BAPTA-5N
BCECF
BTC
BODIPY FL
Calcein
Calcein Blue
Calcium Green
CFDA
Di0
Di0 C6(3)
Dronpa-Green
Eosin
EGFP
FITC
FlourX
FDA
Kaede
JC-1
Mito Tracker Green
Midoriishi-Cyan
NBD-Phallacidin
Oregon Green 488
PA-GFP
Rhodamine 123
S65T
SYTOX
Thiazole Orange
TOTO 1
WT
YO PRO 1
YOYO 1
Narrowband Green excitation-filter
Alexa Flour 532
Alexa Flour 546
Alexa Flour 555
Alexa Flour 568
Cy3
Dil
DsRed
DsRed2
Ethidium Bromide
Ethidium homodimer-1
Kaede
LysoTracker Red DND-99
MitoTracker Red CMXRos
PE-B
PE-R
Phospholipid
PI
Pararosaniline-Feulgen
Resorufin
RH160
RH421
RH423
RITC
Rhodamine-Phallaoidin
TRITC
Pyronin Y
