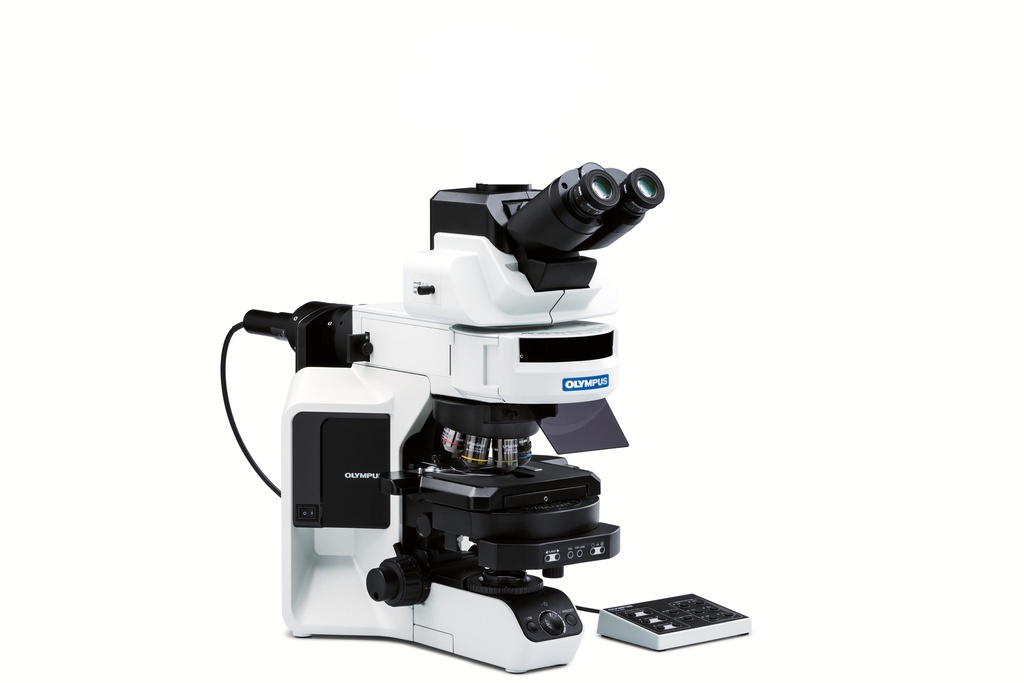

Model: Olympus BX53FL
Contrast Method: Brightfield, Fluorescence
Observation Tube: Tilting trinocular observation tube with adjustable inclination (5°-35°)
Eyepieces: 10X/22 widefield, focusable
Nosepiece: Manual, coded 6-position rotating nosepiece
Objective Classification: Universal Plan Extended Apochromat, Super Apochromat
Objectives: 4x (NA=0.16), 10x (NA=0.4), 40x (NA=0.95) (adjustable cover correction 0.11-0.23 mm)
Stage: Mechanical stage with rackless design and ceramic surface, 250° rotatable, right-hand adjustment
Condenser: Swing-out condenser, NA 0.9-0.17, white contrast cap
Light Source: LED light source with high color rendering
Filter cubes: Narrow UV (exciter filter 360-370nm, beam splitter 410nm, barrier filter 420-460nm), Narrow Blue (exiter filter 470-495nm, 505nm beam splitter, barrier filter 510-550nm), Narrowband Green (exciter filter 540-550nm, beam splitter 570nm, barrier filter 510-550nm)
Included Accessories: Fluorescence light module, manual universal reflected light illuminator (8-position turret), liquid light guide (1.5 m), coded control box
Upgrade Options: Software upgrade (CellSens Standard or Dimension), additional filter cubes and light modules, extra objectives, digital cameras, DIC, polarization, phase contrast
The three excitationsfilters has the following phlorophor-options
Narrow UV excitation-filter
1,8-ANS
(BAO) - Feulgen
Calcein Blue
DAPI
DPH
Filipin
Fast Blue
Granular Blue
Hoechst 33258, 33342
mBCI
OPT
Primuline
Stilbene Isothiosulphonic acid
True Blue
Narrow Blue excitation-filter
Acridine Orange
Acridine Yellow
Alexa Flour 488
Alexa Flour 488-Phalloidin
Azami-Green
BAPTA-1
BAPTA-5N
BCECF
BTC
BODIPY FL
Calcein
Calcein Blue
Calcium Green
CFDA
Di0
Di0 C6(3)
Dronpa-Green
Eosin
EGFP
FITC
FlourX
FDA
Kaede
JC-1
Mito Tracker Green
Midoriishi-Cyan
NBD-Phallacidin
Oregon Green 488
PA-GFP
Rhodamine 123
S65T
SYTOX
Thiazole Orange
TOTO 1
WT
YO PRO 1
YOYO 1
Narrowband Green excitation-filter
Alexa Flour 532
Alexa Flour 546
Alexa Flour 555
Alexa Flour 568
Cy3
Dil
DsRed
DsRed2
Ethidium Bromide
Ethidium homodimer-1
Kaede
LysoTracker Red DND-99
MitoTracker Red CMXRos
PE-B
PE-R
Phospholipid
PI
Pararosaniline-Feulgen
Resorufin
RH160
RH421
RH423
RITC
Rhodamine-Phallaoidin
TRITC
Pyronin Y
