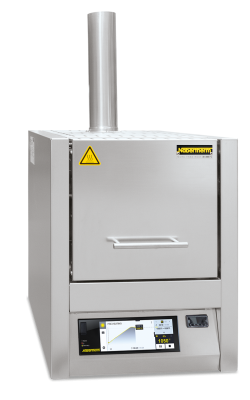

Ashing furnace LV(T) .. 11 is designed especially for ashing processes to 1050 °C in the laboratory. Applications include determining loss on ignition,

ashing food and plastics for subsequent substance analysis. A special fresh-air and exhaust air system ensures that the air is replaced 6 times per minute

so that there is always sufficient oxygen for the ashing process. Incoming air passes the furnace heating and is pre-heated to ensure good temperature

uniformity.

Standard Equipment

· Tmax 1100 °C

· Heating from two sides

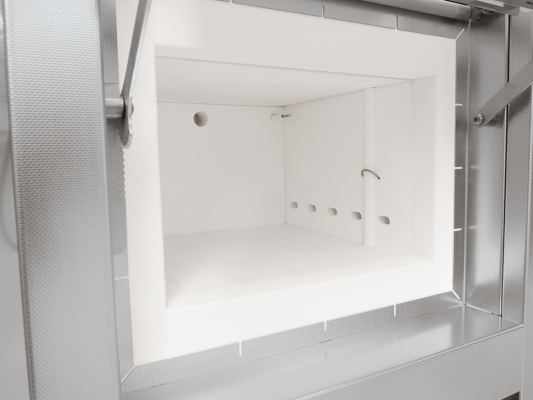

· Ceramic heating plates with integral heating element which is safeguarded, and

easy to replace

· Air exchange of more than 6 times per minute

· Good temperature uniformity due to preheating of incoming air, temperature

uniformity according to DIN 17052-1 to +/− 10 °C in the defined empty work area

(from 550 °C) see page 73

· Suitable for many standardized ashing processes according to ISO, ASTM, EN,

and DIN

· Optional flap door (LV) which can be used as work platform or lift door (LVT) with

hot surface facing away from the operator

· Controller with touch operation B510 (5 programs with each 4 segments),

alternative controllers see page 8

Additional Equipment

· Over-temperature limiter with adjustable cutout temperature as temperature

limiter to protect the furnace and load

· Port for thermocouple in the rear wall or in the furnace door

· Charging rack with closed or perforated trays for loading the furnace in two

levels incl. holder for inserting/removing the trays up to a max. temperature of

800 °C and a max. loading weight per layer of 2 kg for the L(T) 9/11 respectively

3 kg for the LV(T) 15/11 see page 13

· Please see page 17 for more accessories
