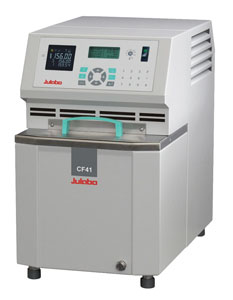

Julabo CF41 recirculator, 5,5 liter, -40 - 200°C

Julabo CF41 recirculator, 5,5 liter, -40 - 200°C

[4968209] Julabo CF41 recirculator, 5,5 liter, -40 - 200°C

HighTech line CF31, CF41

Generally as Economy line but  additionally with:

- Bright VFD display and interactive LCD dialogue display

- Highly precise ICC cascade temperature control

- RS232/RS485 interface for PC connection

- Electronically adjustable pump output

- External Pt100 sensor connection

- Integrated programmer with 6x60 program steps

- Early warning system for low liquid level

- 3-point calibration

- TCF Temperature Control Features



Type CF41

Temp. range -40 to 200 °C

Temp. stability 0.02 ± °C

Cooling capacity kW at 20/0/-20°C 0.47/0.4/0.28

Pump cap. 22-26 / 0.4-0.7 L/min / bar

Suction 0.2-0.4 bar


Log in to see price
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Documents
JULABO-CF41_DAN.pdf

Specifications

Master Data
Group Bade og termostater
Item Type Apparatus
Manufacturer Brand Julabo
Any questions, please contact Bo Deckers Skibild, bds@buch-holm.dk, 44 54 00 33
Sales Unit of Measure Units
Subgroup Refrigerated baths
Qty per Salesunit 1 Units
UNSPSC Category 41103701 Circulating baths
Specifications
Cooling capacity @20°C [Watt] 470
Pump capacity [L/min.] 22 - 26
Pump capacity [bar] 0,35
Heating capacity [W] 2000
Volume intervalL (L) 1_1-5L
Max.Temperature Interval [°C] 3_151 op til 200°C
Max. Temperature 200.0
Min. Temperature -40.0
Model Julabo Cryo-Compact
Resolution [°C] 0,1
Temp. stability [°C] ±0,02
Temperature [°C] -40 - 200
Bath volumen [L] 5.5
