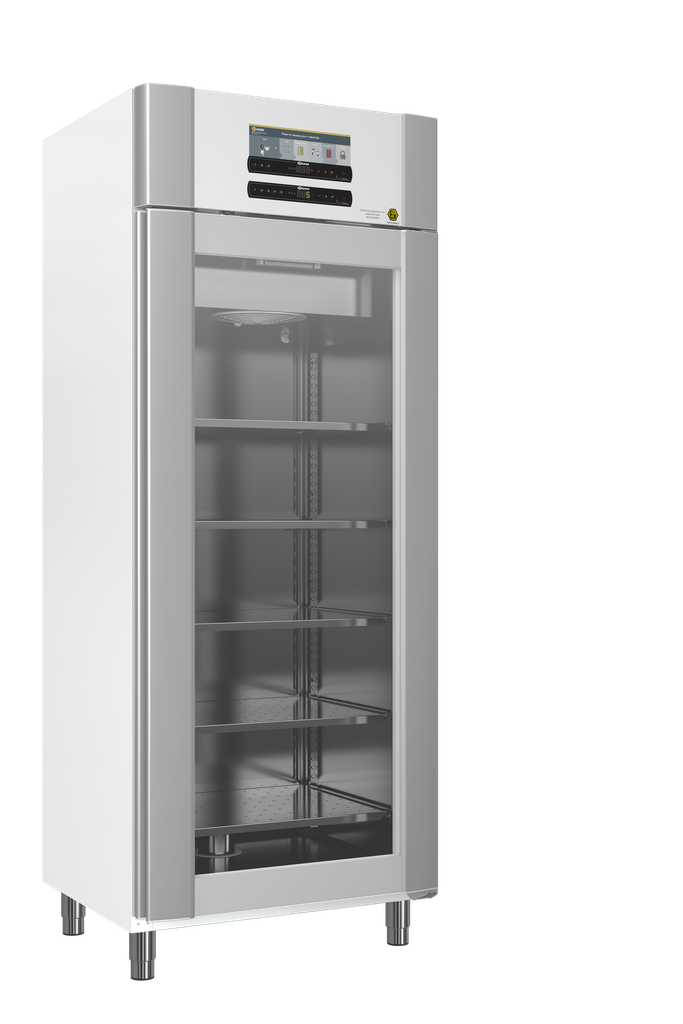

Refrigerator, GRAM ExGuard ER600W, -2/20°C, 614 L, 5 shelves, glass door, white

[4924081] Refrigerator, GRAM ExGuard ER600W, -2/20°C, 614 L, 5 shelves, glass door, white

CHEMICAL REFRIGERATOR WITH EXHAUST

Gram ExGuard refrigerators for storing items that may potentially emit harmful, foul-smelling, and/or explosive vapors. The refrigerator removes health-damaging vapors through the exhaust system before the refrigerator can be opened. Additionally, the cabinet ventilates and removes vapors automatically 4 times a day, and this can be adjusted to 0-24 times a day.

Gram ExGuard is approved according to ATEX Cat.3 Zone 2, both internally and externally. Connection to ventilation with Ø100 mm flexible hose from the top of the cabinet. It is also equipped with temperature and door alarms, a potential-free relay for connection to external monitoring, a conduit for external sensors, and a built-in sensor for media. External dimensions: (wxdxh) 820 x 789 x 2246 mm.

The cabinets are prepared for ventilation and are available with a white or stainless steel cabinet, equipped with adjustable legs and include 5 perforated stainless steel shelves. Comes with a 5-year warranty.

Glass door: 2.08 kWh/24h, 46.3 dB(A) / Solid door: 1.62 kWh/24h, 46.3 dB(A)


Specifications

Master Data
Group Køleskabe
Subgroup Refrigerator w/ extraction control
Item Type Apparatus
Manufacturer Brand Gram
UNSPSC Category 41103011 General purpose refrigerators or refrigerator freezers
Sales Unit of Measure Units
Qty per Salesunit 1.0 Units
Any questions, please contact Mikkel Holm, mih@buch-holm.dk, +45 29 99 66 15
Specifications
Ext. dimensions (wxdxh) [mm] 820 x 785 x 1996/2246
Min. Temperature -2.0
Model Gram ExGuard
