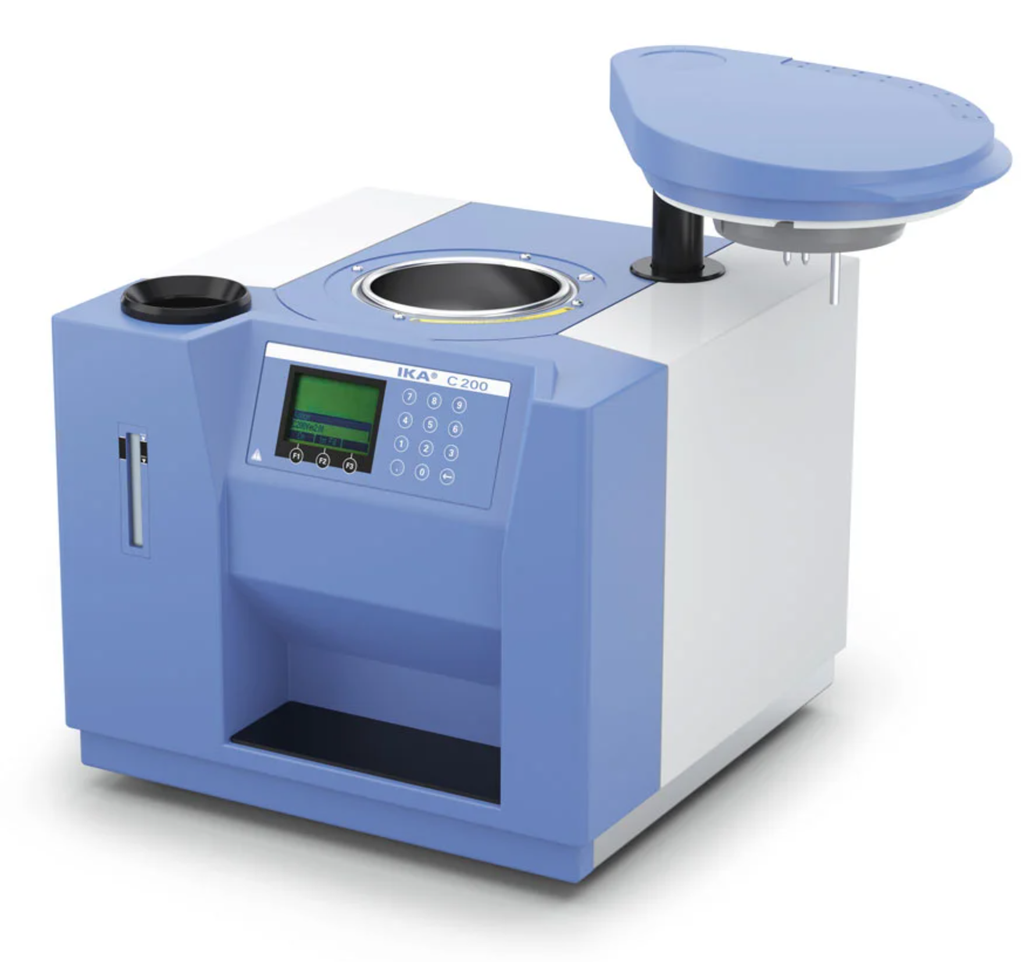

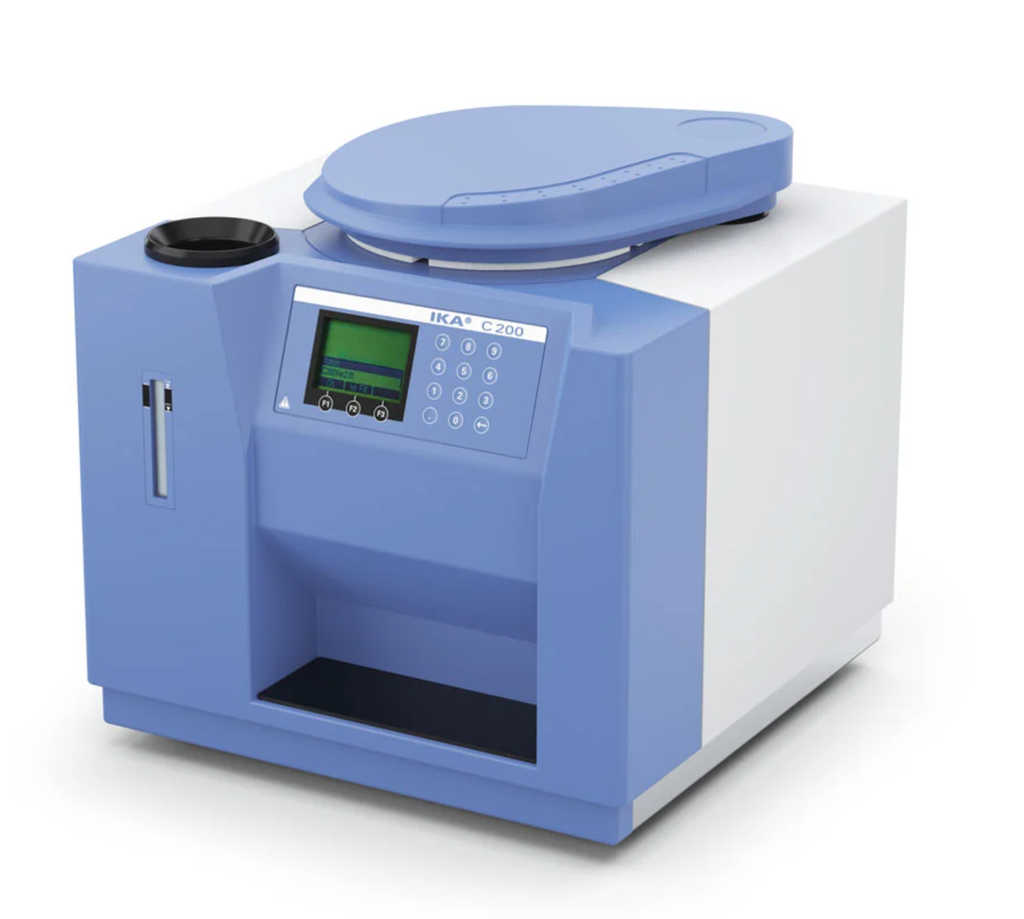

IKA C 200 Calorimeter is a space saving and low-cost combustion calorimeter for determining gross calorific values of liquid and solid samples. Suitable for teaching and training, as well as technical schools, universities and for industrial laboratories with less analyses.

• Validation according to DIN 51900, ISO 1928, ASTM D240, ASTM D4809, ASTM D5865, ASTM D1989, ASTM D5468, ASTM E711
• Manual handling for water and oxygen filling
• Clear and easily explained display which is simply to use
• Operating voltage of the calorimeter is 24 V DC low- voltage
• Up to eight IKA measuring cells can be controlled by a single PC, using a multi serial plug in card PCI 8.2 (optional)
• Calorimeter software C 6040 Calwin (optional), for data management

Four different working methods: isoperibolic, dynamic, manual and time controlled

Manual (teaching mode): ignition and end of the measurement will be done by the operator himself; the temperature increase will be indicated at the display each minute. All calculations must be done manually.

At the other three modes ignition and calculation of the gross calorific value will be done automatically.

The gross calorific value will be shown on the display. Acid corrections and calculations of the net calorific value must be done manually.

The modes have different measuring times:

• Isoperibolic: approx. 17 min.
• Dynamic: approx. 8 min
• Manual: approx. 17 min (depending on the operator)
• Time controlled: 14 min

Scope of delivery:

• C 200 Measuring cup 200 mL
• C 5010 Decomposition vessel
• C 248 Oxygen filling station
• Water emptying hose
• Consumables for calibrations and installation

The decomposition vessel can be equipped to use an combustible crucible C 14 (accessory C 5010.4 attachment is necessary)

Please note: Not for halogenetic samples. Contact us for questions and customization of the calorimeter.
