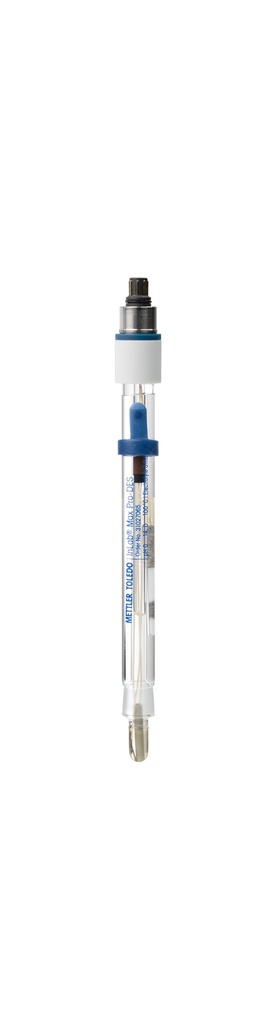

InLab Max Pro-DES
A glass body, combination pH electrode with integrated temperature sensor, sVP8 DES® sensor head and DES® technology. Designed for general laboratory applications; highly reproducible and fast.
Self-cleaning junction: The high electrolyte outflow prevents the pollutants from entering and clogging the junction, which would interfere with the reading.
High pH values, low alkali error: The extremely robust HA membrane glass is specifically designed for use at high pH values, reducing common alkali errors to a minimum.
Stay ahead: The sensor's diagnostic capability means peace of mind for the sensor condition. It supports preventive maintenance, maximizes the sensor’s lifespan and prevents premature discard.
Sustainable investment: DES® digital sensors are a smart choice. Retaining the measurement electronics and only replacing the sensor shaft at the end of its life, or the detachable cable that can be used for all sensors, helps reduce material waste and thus, the ecological footprint.
Boost productivity and efficiency: With diagnosed errors, the user guidance with troubleshooting recommendations allows for faster problem-solving, thus reducing downtime. It also minimizes handling errors therefore cutting down on the need for specialized training.
Specifications:

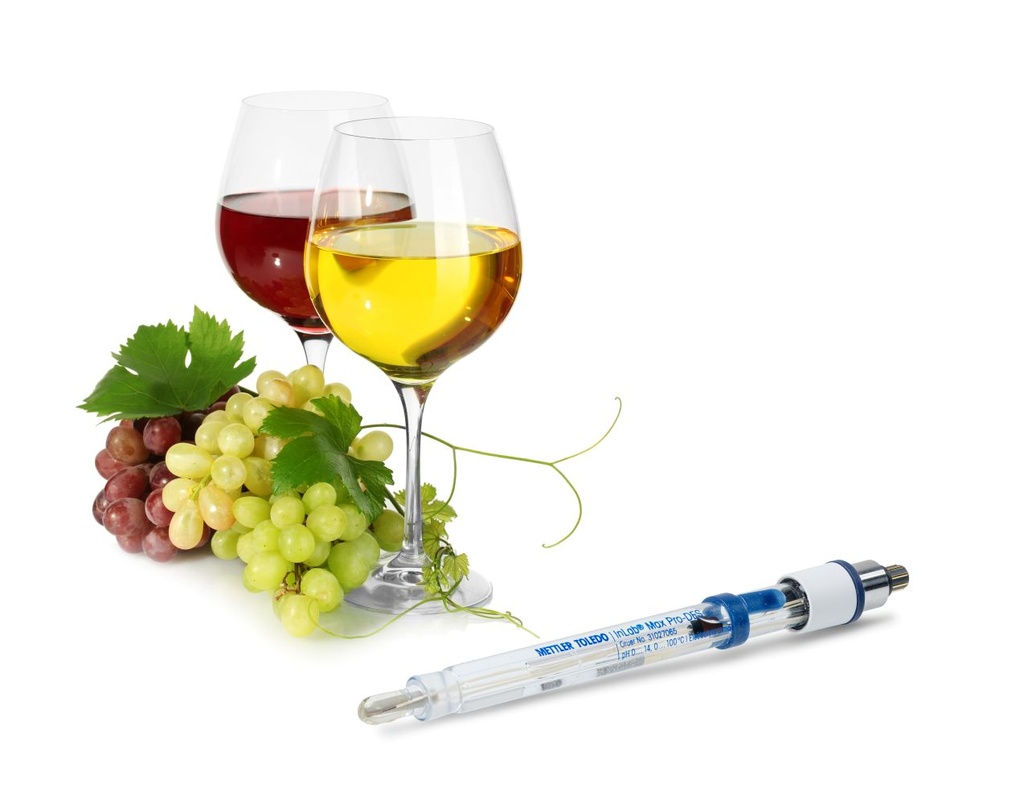

- Use case: Liquid culture media, wine, TRIS buffers
- Connector: Mini-DIN - requires Signal Bridge (sVP8)
- Measuring range, pH: 0 – 14
- Minimum sample volume: 20 mL
- Reference system: ARGENTHAL® with Ag+ trap
- Reference electrolyte: 3 M KCl (Ag-free), refillable
- Sample composition: Aqueous; samples containing proteins, TRIS, or sulfides
- Sample consistency: Liquid; sludge, slurry, suspensions
- Sample temperature: 0 °C – 100 °C
- Sensor Type: Combined electrode
- Shaft Diameter: 12 mm
- Shaft Material: Glass
- Shaft length: 120 mm
- Signal Type: Digital
- Temperature probe: NTC 30 kΩ
- Measuring range, temperature: 0 °C – 100 °C
- Junction: Immovable glass sleeve
