Universal Waste Hub: SCAT Europe JAN, S 55

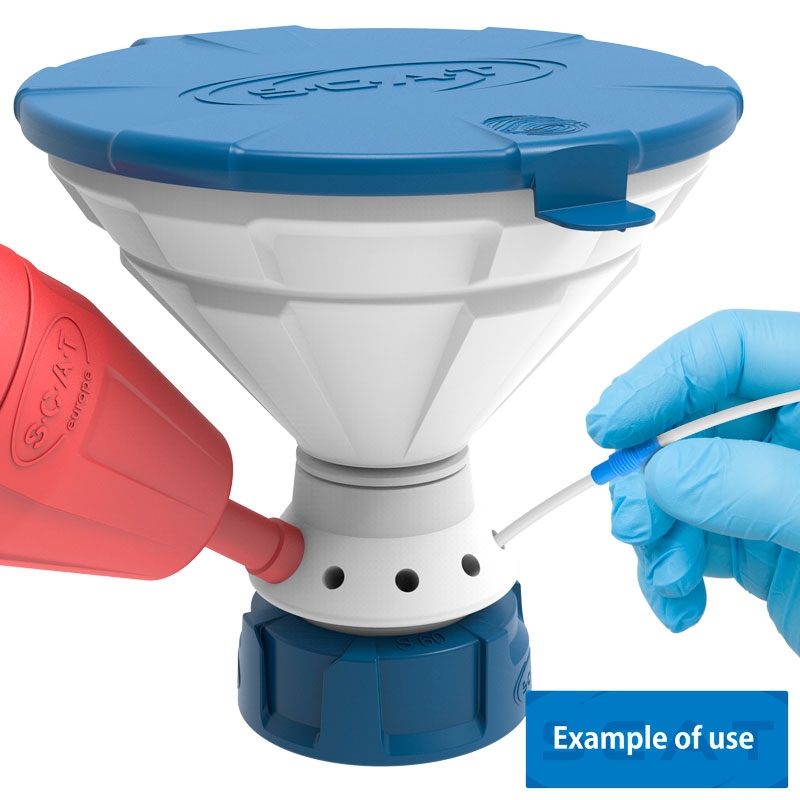

Waste collection hub "JAN" from SCAT Europe consists of a funnel with lid and safety grid on top of a hub for capillary and tube connections. Large scope of delivery, including blind plugs for connections that are not used. Available for many container or thread sizes.

This funnel offers reliable work protection and chemical resistance; thanks to the hinged lid with integrated seal, even harmful solvent vapours cannot escape. The removable dirt sieve safely catches solids such as magnetic stirrer bars. While closed, any harmful solvent vapours will not escape, thanks to the charcoal exhaust filter (purchased separately). Connect your waste tubes to the collection hub and dump directly into the container below, or open the lid and pour through the sieve.

Specifications:

• Material: PE-HD
• Thread: S 55
• No. of capillary connections: 4, UNF 1/4"
• No. of tube connections: 3 (for tubing with 5 - 11.5 mm ID)
• 4 x PFA fitting 1.6 mm OD
• 4 x PFA fitting 2.3 mm OD
• 4 x PFA fitting 3.2 mm OD
• 4 x PFA blind plugs for HPLC connections, UNF 1/4"
• 3 x blind plug tube connections, NPT 1/8"
• 1 x female GL 14 thread for exhaust filter
