Platform shakers Titramax 100/101/1000

Vibrating

Your advantages
- Rule out accidents: all models have been designed with a low centre of gravity which prevents gliding at high speed, even on a damp surface
- Choose between different shaking motions, orbits, angles and load capacities the right model for your specific application
- Unlimited visual reaction control at all times: the transparent, non-fogging PETG material offers it all
- For applications in microbiology: insulated drive system prevents any heat-up coming from the motor and consequently thermal damage to your sample
- Immediate access: optional incubator hood opens instantly and interlocks in any position
- An over temperature sensor preventatively shuts off the unit in a dangerous heat-up situation, particularly valuable for you in case of unattended continuous operation

Titramax 100 - The compact model
- Titramax 100 is a compact and space saving unit that accepts load capacities of 2kg and space for 4 microtiter plates
- Your analog process timer allows for unattended operation and can be set from 1 to 120 mins. After time expires this model sends an acoustic alarm and operation is stopped
- Set and continuously adjust the variable speed on the analog control knob from 150rpm to 1350rpm
- The 1.5mm vibration orbit performs gentle mixing with best results using small sample volumes

Titramax 101 - The strong model
- Includes all Titramax 100 features, plus:
- The 3mm vibration orbit accomplishes better results with higher volume samples than the Titramax 100 to yield consistent mixing of samples in the plate

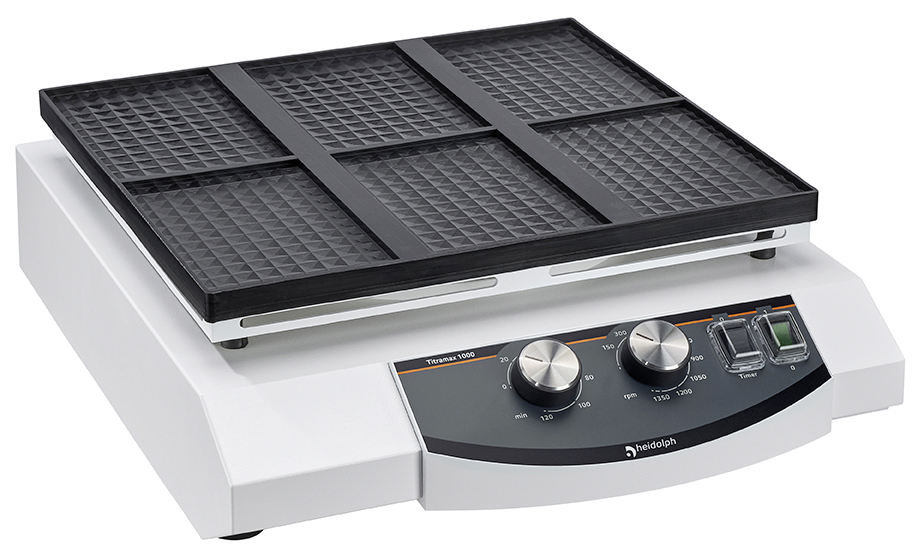

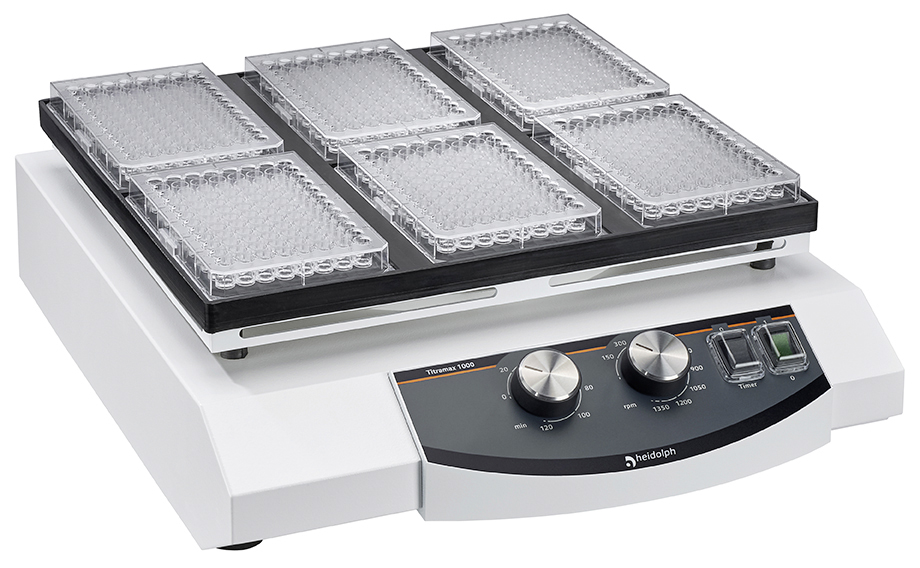

Titramax 1000 - The incubating model
- Includes all Titramax 100 features, plus:
- The use of 6 microtiter plates increases your throughput by 50%
- The 1.5mm vibration orbit performs gentle mixing with best results using small sample volumes
- Titramax 1000 is a medium sized model and accepts load capacities of 5kg
- This model is suitable for the modular incubator system and is recommended for applications which require variable temperature control of up to 65°C
Type Titramax 1000
Orbit 1.5 mm
Rotation speed 100 to 1350 rpm
Max. no. plates 6
Width 320 mm
Depth 375 mm
Height 125 mm
