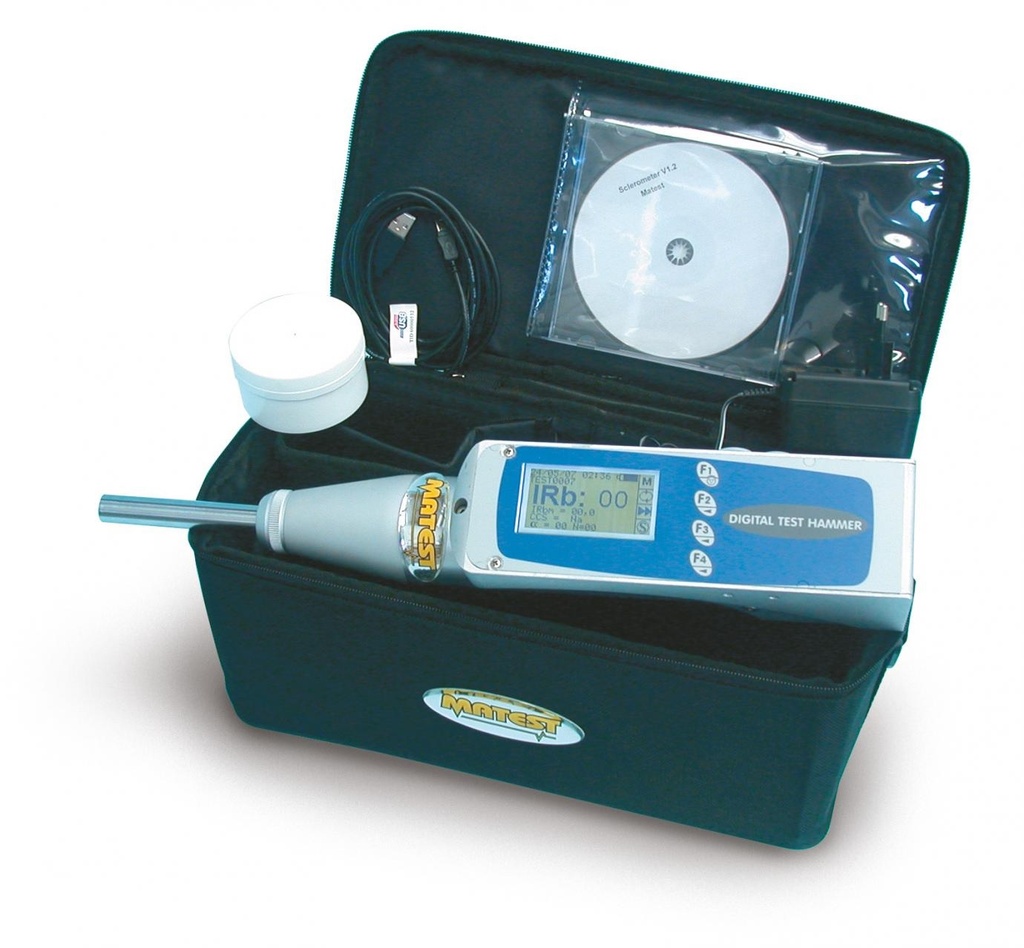

This digital concrete test hammer, microprocessor operated, entirely designed and manufactured by Matest with advanced technology, performs basic concrete testing with continuous automatic recording of all parameters in accordance with EN 12504-2 Specifications, register and process data and then transfer them to a PC The unit consists of the standard mechanical model C380, but equipped with an electronic transducer that measures the rebound values and supplies automatically the results on a graphic display.

During test performing:

Shows index value

Shows average index value

Allows to select measuring system in N/mm2 (MPa) or Psi

Shows numbers of performed rebounds

Shows date and time

Identifies tested element

Identifies automatically and shows rebound angle

Shows battery life

Main features:

Possibility to store, display on graphic LCD 64x124 and download data to PC over 20000 tests

Automatic statistical processing and readings

Automatic conversion of rebound index to equivalent compression strength in psi, N/mm2, kg/cm2

High accuracy and resolution

Dimensions with case: 330x180x120 mm

Weight: 3 kg
