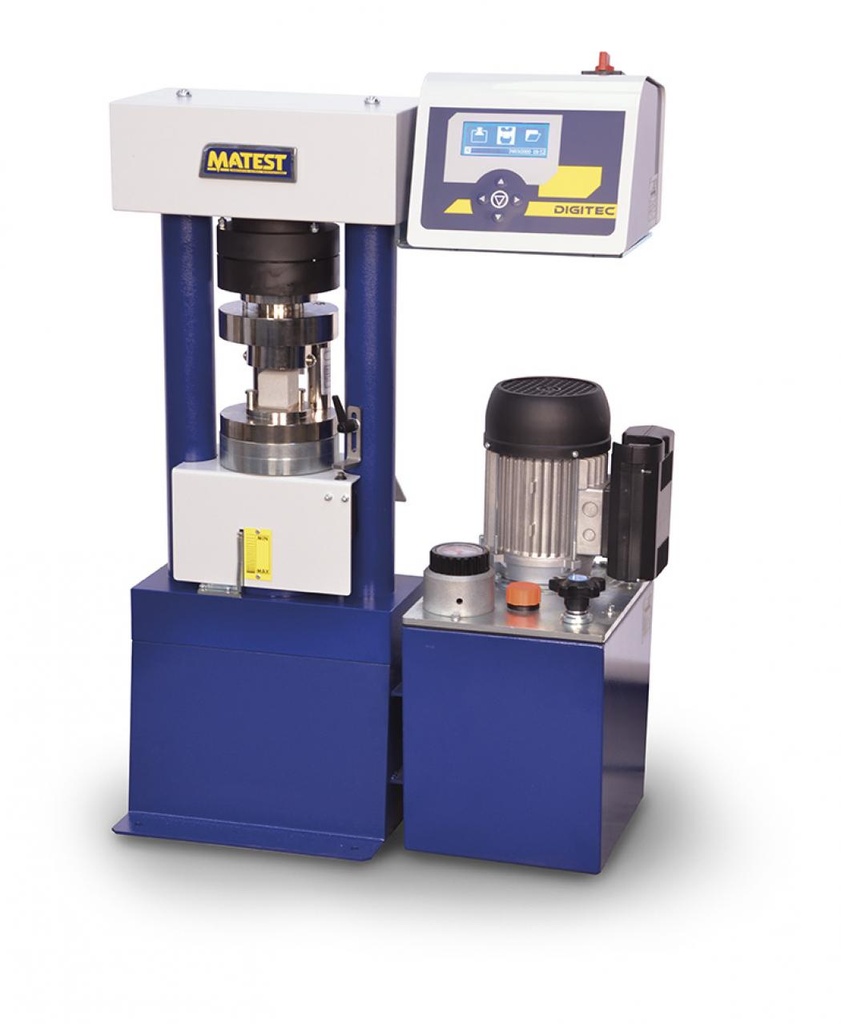

Compression machine 500 kN motorized with Digitec control unit for cement and mortar specimens, bricks, rocks, refractories etc.

Designed to perform compression tests on portions of prism 40,1x40x160 mm, cubes side 40, 50, 70, 100 mm and 2"; cores with max. height of 180 mm, by using the suitable compression devices described in next pages (accessories mod. E170 - E171-01).

 - Two columns high stiffness frame.

 - Max. vertical daylight between platens: 185 mm

 - Platens diameter: 153 mm

 - Ram travel: 45 mm approx.

 - Accuracy: Grade 1 starting from 1/10 of the scale
