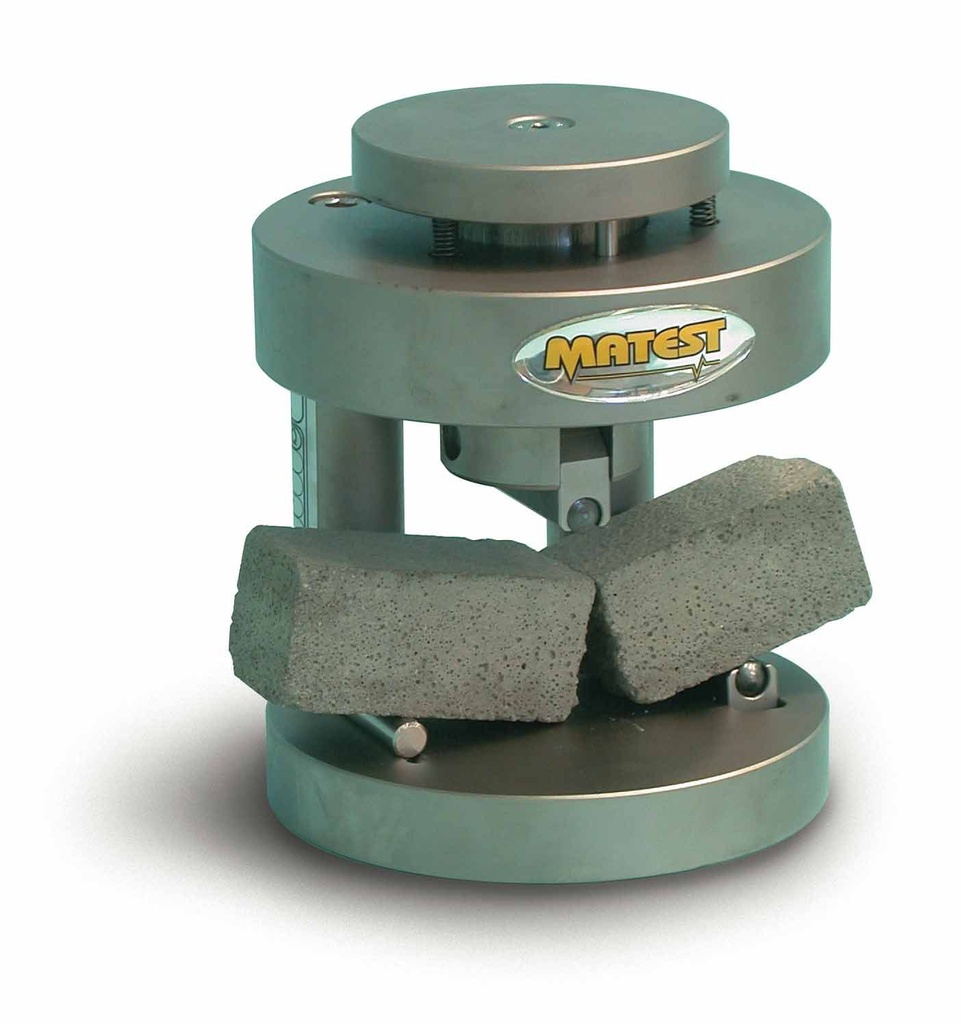

Upper bearer is seat ball assembled. The distance between lower bearers is 100 mm and one of them has a spherical seat. Cadmium plated for rust protection.

Dimensions: 160x153xh185 mm

Weight: 11 Kg

E172-01: Flexure device for 40.1x40x160 mm prisms, EN 196-1 | EN 1015-11 | DIN 1164 | ISO 679

E172-02: Flexure device for 40x40x160 mm prisms. Lower bearers have distance of 119 mm as requested by ASTM Standard C348.
