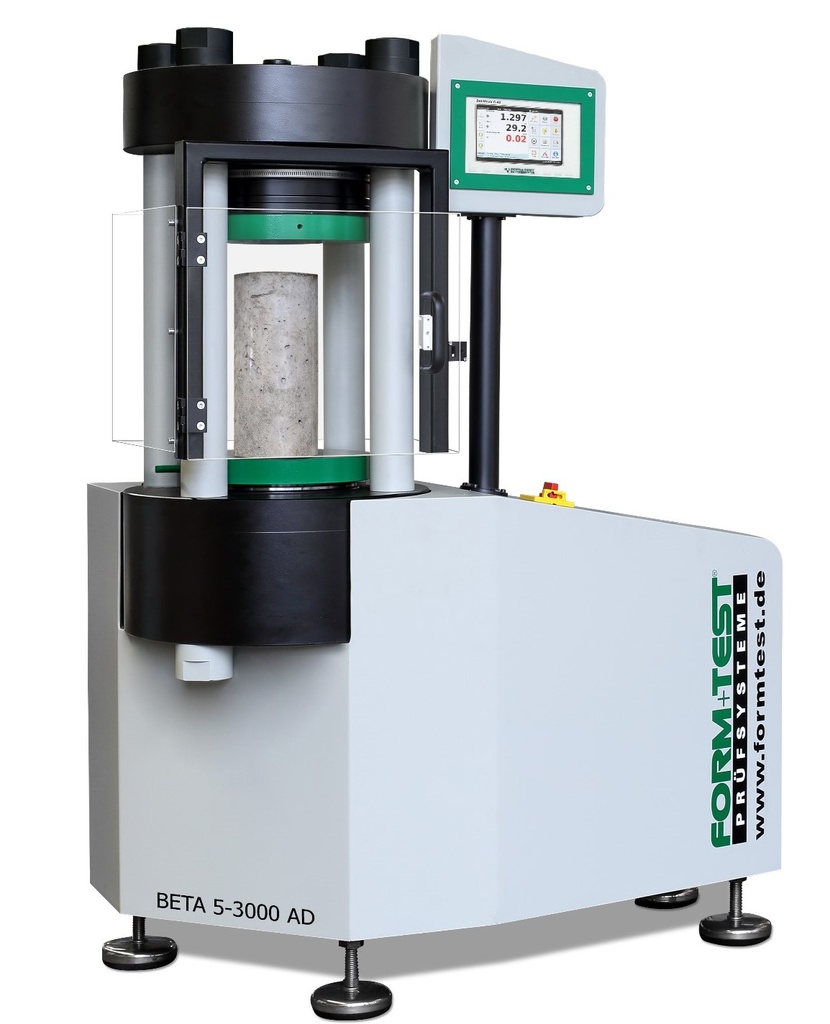

Compression Testing Machine BETA 5-3000 AD

According to DIN EN ISO 7500-1, class 1 and DIN EN 12 390-4, 2025: class A in Straintest execution.

Standards for the determination of comperssive strengths according to: EN 12390-4, EN 12504-1 and EN 206.

Frame

- rigid load frame in 4 column construction

- the columns are screwed free from play to the machine's foot and head

- machine's foot and head are cut from the solid, all bearing surfaces are mechanically       machined

- machine's columns painted

Testcylinder

- single acting

- cut from the solid – no screwed-in bottom

- screwed to the machine's foot by tension elements

Load measuring

- by electronic pressure transducer (DMS)

Piston

- hardened and micro finished

- bearing surface face grinded

- piston stroke limitation by end-switches

- piston guiding

Platen

- upper platen spherically seated to allow an inclination up to 3°

- all transmission surfaces are additionally plane parallel treated and ultra-fine turned

- universal ball joint in special execution, since the balance, the centric force

and the blocking must be granted within prescribed limit values

- ball plate suited in oil-bath

- inclusive an extra calibration certificate for the Straintest

Protective Grid

- absolutely necessary for "CE"-sign

- on all sides pane made of macrolon, mounted in aluminium profile

- profile frame door at the front side with pane made of macrolon

- electric safety switch

= the testing machine only works if the door is closed

Technical Data

test load max. 3.000 kN

piston stroke 50 mm

upper platen Ø 300 mm

lower platen 210 x 210 mm

thickness of platen 40 mm

hardness of platens 55 HRC

test chamber height 330 mm

clear distance between columns 230 x 175 mm

stiffness 3.300 kN/mm

measuring range 80 - 2.000 kN

display range 0 - 2.000 kN

DRIVE by Compact Station UB06-C44

- machine's base with lateral housing for the display / control

- electric multi-piston hydraulic pump installed in oil-tank

servo control by digital controller

- speed control for constant load increase, adjustable

as ramp function between 0,1 – 50 kN/s

- automatic disloading of the system at specimen's break,

incl. high pressure filter

- load measuring by a digital display for the correct measuring value display

in connection with pressure transducer

pump volume 1,8 l/min.

oil tank capacity 20 l

hydraulic oil viscosity 68 cstk / 40 °C

oil filtration 3 micron

Digital controller DIGIMAXX® C-44

• digital independent control system of the latest device platform

for a high degree of accuracy and reproducibility of the test results

• support and long-term component availability
• control of a testing machine in force control
• high control stability
• PID-controller with DSP processor for control and signal processing
• handwheel option for easy operation in set-up mode
• the PROTEUS MT testing software can be optionally used for program controlled test execution, data acquisition and evaluation
• programmed control of the interfaces to the drive, taking into account the safety circuit (motor/pump, safety door)
• support of SmartSensors (TEDS, IEEE 1451)
• LED-lights for "Power" and "Status"

Genaral functions

•  freely programmable test sequences for compression and bending tensile tests in autonomous operation. Without test software via integrated touch panel

• event detectors for test monitoring such as hardware limits, break detection, etc.
• control loop optimization by setting the PID parameters in real time
• linearization function for all channels using software optimization platformfor easy configuration by the service. Function via Touch-Panel
• intuitive operation via capacitive and robust 7" touch display, which is easy to operate even under adverse conditions (dust/dirt)

• clear control panel with simple operation in the menu-guided dialog
• control of drive and door locking
• setting of configuration parameters such as PID values, startup and descent parameters, etc.
• operating keys for the setup mode
• functional, simple and fast parameterization/execution of standardized test programs
• via test templates
• zero-adjustment for force- and other channels (manually or integrated in the test sequence)
• real-time display of the force channel as well as of the specimen strengths and test speed
• manual switching on/off of the break detection in the test sequence.
• specimen storage for test results
• data export via USB interface
• authorization model with different role and access authorizations (tester, laboratory manager, service technician, administrator)

Data

• measuring- and control cycle 2 kHz
• transmission of measured value up to1 kHz
• the controller is compatible and interchangeable with the previous proven device platform (C20, C22, C24)
• connection of measurement and control technology (control valve, fluid pressure transducer or force transducer, 10V outputs/and inputs, etc.)
• 2 digital inputs galvanically isolated
• 2 potential-free relay outputs

• Ethernet connection for communication with PC soft
• USB port for data export

Dimensions & Weight

Dimensions (W x D x H) 1.100 x 550 x 1.465 mm

working height 820 mm

weight approx. 890 kg

voltage 1x 230 Volt / 50 Hz

power supply 1,5 kW

Painting 2 coloured (grey-green)

customs tariff no.: 90248000

country of origin: DE
