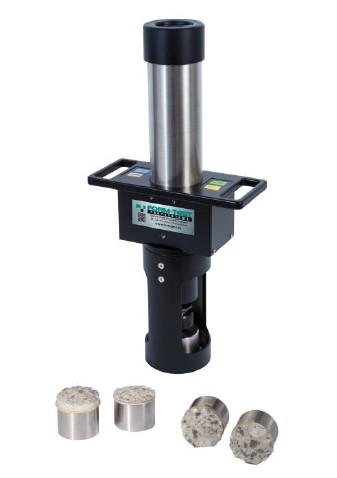

Bond Strength Tester
ConsurTest
Class 1 acc. to EN ISO 7500-1
for determination of the surface tensile
strength, tensile adhesive strength and
pull-of strength of:
• concrete
• screed
• mortar
• adhesives
• plaster
• coatings
• parquet flooring
• thermal insulation composite systems
(with special accessories)
Advantages:
• automatic load control
(force control)
• constant bumpless rate of
loading
• accuracy +/- 1 %
• grips for comfortable use on walls and
ceilings
• low weight
• mobile device
• battery-supplied
• free input of test speeds
(N/sec., MPa)
made
in
Germany
• route-controlled testing (mm/min)
• immediate control of the course of the test
• currently 17 fixed programmed testing pro
cedures relating to testing speed and sizes
of test plates
acc. to the following
standards:
• DIN 1048-2,
ZTV-ING (2003),
EN 1015-12,
EN 1348,
EN 1542 (1999),
EN 12618-2 (2004),
EN 13892-8 (2003),
DIN EN ISO 4624,
ETAG 004
all test programs are stored on the tablet
PC and are transferred to the bond strength
tester via Bluetooth.
• data storage on the tablet PC is effected
vice versa.
• measuring values are indicated both on the
bond strength tester and on the tablet.
Further Possible Applications
acc. to Standards:
• EN 13395-4 (2002)
• DIN 18555
• ZTV-SIB (1990)
• DAfStb-Rili
• BEB-Merkblatt
• BS 1881
• ASTM C 1583
Scope of Supply:
• bond strength tester with inte
grated LCD-display, Bluetooth
to tablet PC
• quick coupling (illuminated)
• integrated storage battery for
approx. 100 tests
• charger for tablet PC
• transport case
• operating manual
• high-quality tablet PC with touch
screen for storing the measured
values with the possibility of
recording a test-relevant voice
memo and up to 5 photo recor
dings of the fracture
• charger for bond strength tester
• calibration certificate
• Bond Strength Testing
Software ConsurSoft
we have developed a modern and simple
software for our bond strength testers, with
which you can have all your relevant tests
summarized on a final report
